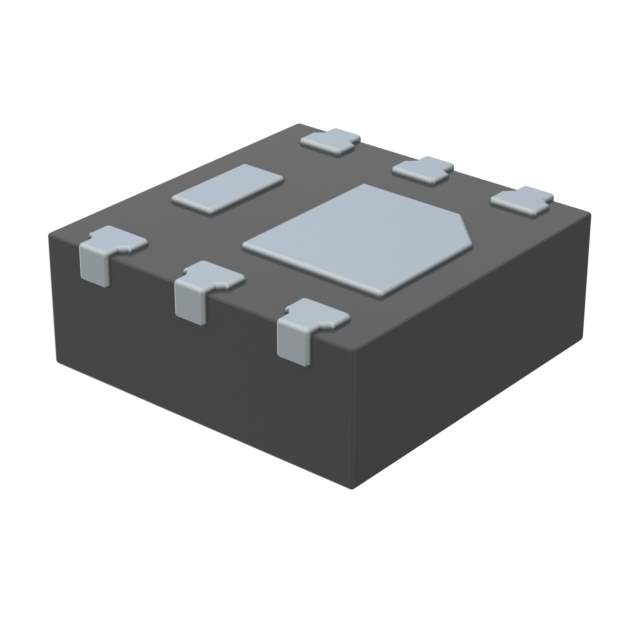

PJQ2405_R1_00001

Name: PJQ2405_R1_00001
Brand: Panjit
SKU: 1085301
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

Part No	PJQ2405_R1_00001
Manufacturer	Panjit
Catalog	Transistors - FETs, MOSFETs - RF
Description	20V P-CHANNEL ENHANCEMENT MODE M / P-Channel 20 V 7.2A (Ta) 2.8W (Ta) Surface Mount DFN2020B-6
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Discrete Semiconductor Products>Transistors - FETs, MOSFETs - Single
Mfr	Panjit International Inc.
Package	Tape & Reel
FET Type	P-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	20 V
Current - Continuous Drain (Id) @ 25°C	7.2A (Ta)
Drive Voltage (Max Rds On, Min Rds On)	1.8V, 4.5V
Rds On (Max) @ Id, Vgs	32mOhm @ 7.2A, 4.5V
Vgs(th) (Max) @ Id	900mV @ 250µA
Gate Charge (Qg) (Max) @ Vgs	18.9 nC @ 4.5 V
Vgs (Max)	±8V
Input Capacitance (Ciss) (Max) @ Vds	1785 pF @ 10 V
Power Dissipation (Max)	2.8W (Ta)
Temperature Range - Operating	-55°C ~ 150°C (TJ)
Mounting	SMD (SMT)
Supplier Device Package	DFN2020B-6
Package / Case	6-WDFN Exposed Pad
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8541.29.0095
Other Names	3757-PJQ2405_R1_00001TR,3757-PJQ2405_R1_00001CT,3757-PJQ2405_R1_00001DKR
Standard Package	3,000
Win Source Part Number	1085301-PJQ2405_R1_00001
Ultra Librarian 3D Model	Ultra Librarian PJQ2405_R1_00001 CAD Model

Alternative Products

Description

The PJQ2405_R1_00001 is a P-Channel MOSFET transistor manufactured by Panjit International Inc.

Maximum Drain to Source Voltage: 20V
Continuous Drain Current: 7.2A @ 25°C
Maximum On-Resistance: 32mOhm @ 7.2A and 4.5V
Gate Charge: 18.9 nC @ 4.5V
Input Capacitance: 1785 pF @ 10V
Package: 6-WDFN exposed pad
Supplier Device Package: DFN2020B-6
