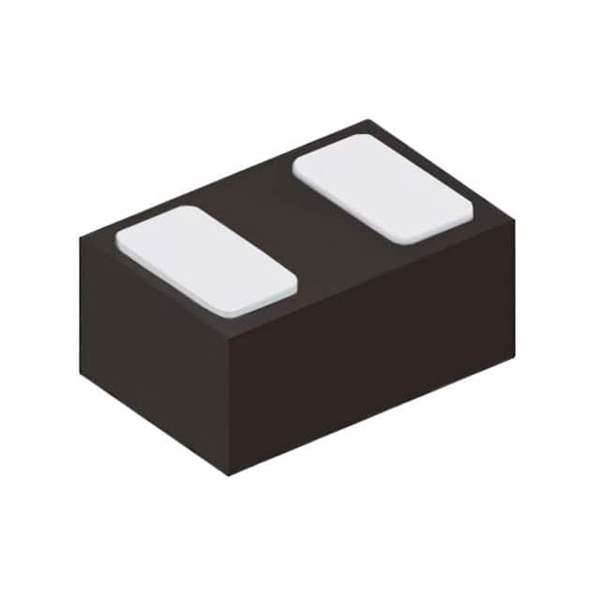

PEC1205S1Q_R1_00001 Panjit
Same model may have multiple batches, images only for reference.

PEC1205S1Q_R1_00001

Part No PEC1205S1Q_R1_00001
Manufacturer Panjit
Catalog TVS - Diodes
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>TVS - Diodes
Mfr Panjit International Inc.
Package Tape & Reel
Type Zener
Bidirectional Channels 1
Voltage - Reverse Standoff (Typ) 5.5V (Max)
Voltage - Breakdown (Min) 6V
Voltage - Clamping (Max) @ Ipp 14V (Typ)
Current - Peak Pulse (10/1000µs) 2A (8/20µs)
Power Line Protection No
Applications General Purpose
Capacitance @ Frequency 0.2pF @ 1MHz (Max)
Temperature Range - Operating -55°C ~ 150°C (TJ)
Mounting SMD (SMT)
Package / Case 0201 (0603 Metric)
Supplier Device Package DFN0603-2
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.10.0080
Win Source Part Number 1315537-PEC1205S1Q_R1_00001
Ultra Librarian 3D Model Ultra Librarian PEC1205S1Q_R1_00001 CAD Model

Description

The PEC1205S1Q_R1_00001 is a Zener type TVS diode that is perfect for general purpose applications.

  • Voltage Reverse Standoff: 5.5V (Max)
  • Voltage Breakdown: 6V (Min)
  • Voltage Clamping @ Ipp: 14V (Typ)
  • Power Peak Pulse: -
  • Capacitance @ Frequency: 0.2pF @ 1MHz (Max)
  • Current Peak Pulse: 2A (8/20µs)
  • Package/Case: 0201 (0603 Metric)
  • Supplier Device Package: DFN0603-2
  • MSL Level: 1 (Unlimited)
  • HTSUS: 8541.10.0080
  • Manufacturer: Panjit International Inc.
