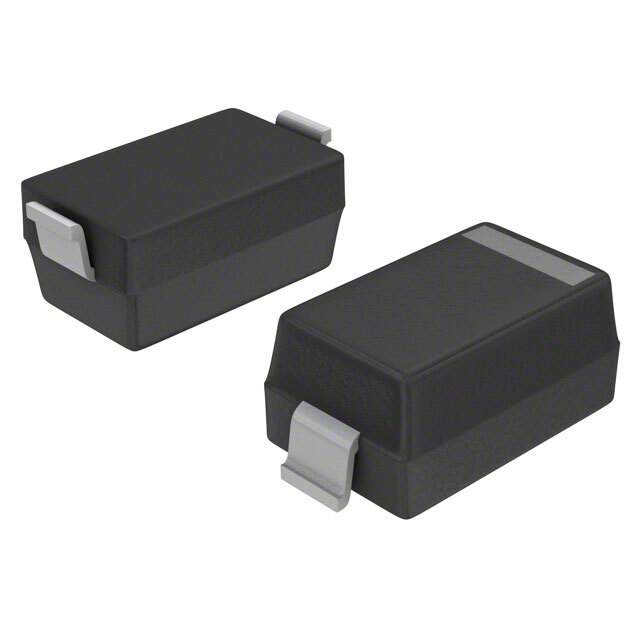

MMSZ5250B_R1_00001 Real Image
Same model may have multiple batches, images only for reference.

MMSZ5250B_R1_00001

Part No MMSZ5250B_R1_00001
Manufacturer Panjit
Catalog Diodes - Zener - Single
Description SOD-123, ZENER / Zener Diode 20 V 500 mW ±5% Surface Mount SOD-123
Datasheet
MMSZ5250B_R1_00001 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products>Diodes - Zener - Single
Mfr Panjit International Inc.
Package Tape & Reel
Voltage - Zener (Nom) (Vz) 20 V
Tolerance ±5%
Power - Max 500 mW
Impedance (Max) (Zzt) 25 Ohms
Current - Reverse Leakage @ Vr 100 nA @ 15 V
Temperature Range - Operating -55°C ~ 150°C (TJ)
Mounting SMD (SMT)
Package / Case SOD-123
Supplier Device Package SOD-123
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.10.0050
Other Names 3757-MMSZ5250B_R1_00001TR,3757-MMSZ5250B_R1_00001DKR,3757-MMSZ5250B_R1_00001CT
Standard Package 3,000
Win Source Part Number 957947-MMSZ5250B_R1_00001
Ultra Librarian 3D Model Ultra Librarian MMSZ5250B_R1_00001 CAD Model

Description

The MMSZ5250B_R1_00001 is a single zener diode from Panjit International Inc.

  • Voltage Rating: 20 V
  • Power Rating: 500 mW
  • Voltage Tolerance: ±5%
  • Impedance: 25 Ohms
  • Reverse Leakage Current: 100 nA @ 15 V
  • Package/Case: SOD-123
  • Operating Temperature: -55°C to 150°C
  • Packaging: Tape & Reel
  • Standard Package: 3,000
