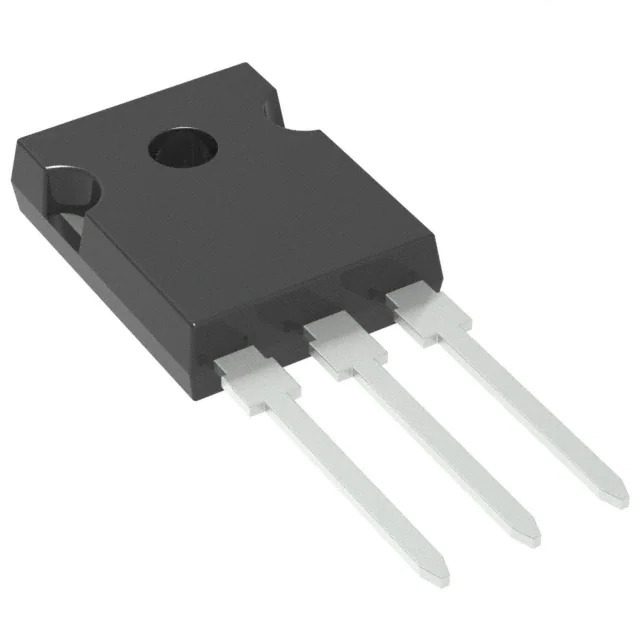

MBR30200PT_T0_00001 Panjit
Same model may have multiple batches, images only for reference.

MBR30200PT_T0_00001

Part No MBR30200PT_T0_00001
Manufacturer Panjit
Catalog Diodes, Rectifiers - Arrays
Description TO-3P, SKY
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products - Diodes - Rectifiers - Diode Arrays
Mfr Panjit International Inc.
Series -
Package Tube
Product Status Active
Diode Configuration 1 Pair Common Cathode
Technology Schottky
Voltage - DC Reverse (Vr) (Max) 200 V
Current - Average Rectified (Io) (per Diode) 30A
Voltage - Forward (Vf) (Max) @ If 900 mV @ 15 A
Speed Fast Recovery =< 500ns, > 200mA (Io)
Current - Reverse Leakage @ Vr 50 µA @ 200 V
Operating Temperature - Junction -65°C ~ 175°C
Mounting Type Through Hole
Package / Case TO-247-3
Supplier Device Package TO-247AD (TO-3P)
Base Product Number MBR30200
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Win Source Part Number 1367149-MBR30200PT_T0_00001
Ultra Librarian 3D Model Ultra Librarian MBR30200PT_T0_00001 CAD Model

Description

The MBR30200PT_T0_00001 is a diode array manufactured by Panjit International Inc. It is a rectifier diode array designed for various applications.

  • Package: TO-247-3
  • Mounting Type: Through-Hole
  • Maximum Reverse Voltage (Vr): 200 V
  • Forward Voltage (Vf): 900 mV @ 15 A
  • Recovery Time: Less than 500 ns
  • Reverse Leakage Current: 50 μA @ 200 V
  • Temperature Range: -65°C to 175°C
  • REACH: Unaffected
  • ECCN: EAR99
