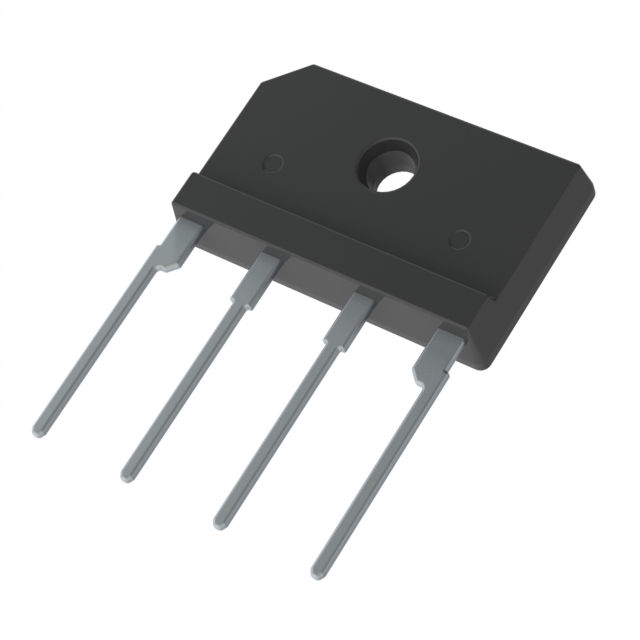

Same model may have multiple batches, images only for reference.
KBJ2510_T0_00601 Panjit – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

KBJ2510_T0_00601

Part No KBJ2510_T0_00601
Manufacturer Panjit
Catalog Bridge Rectifiers
Description Bridge Rectifier Single Phase Standard 1 kV Through Hole KBJ
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Panjit International Inc.
Packaging Tube
Diode Type Single Phase
Technology Standard
Voltage - Peak Reverse (Max) 1 kV
Current - Average Rectified (Io) 25 A
Voltage - Forward (Vf) (Max) @ If 1.1 V @ 25 A
Current - Reverse Leakage @ Vr 5 µA @ 1 V
Temperature Range - Operating -55°C ~ 150°C (TJ)
Mounting Type Through Hole
Package / Case 4-SIP, KBJ
Supplier Device Package KBJ
Base Product Number KBJ2510
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8541.10.0080
Win Source Part Number 1479014-KBJ2510_T0_00601
Ultra Librarian 3D Model Ultra Librarian KBJ2510_T0_00601 CAD Model
