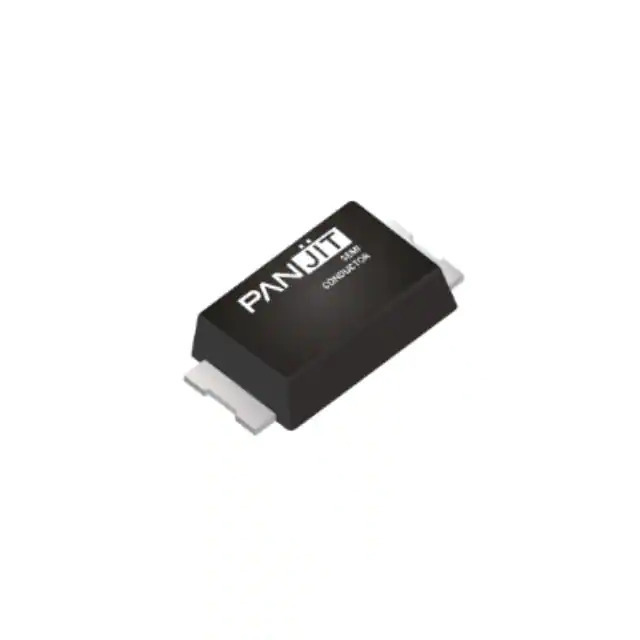

GS1MAFC_R1_00001 Panjit
Same model may have multiple batches, images only for reference.

GS1MAFC_R1_00001

Part No GS1MAFC_R1_00001
Manufacturer Panjit
Catalog Diodes, Rectifiers - Single
Description DIODE GEN PURP 1KV 1A SMAF-C
Datasheet
GS1MAFC_R1_00001 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products - Diodes - Rectifiers - Single Diodes
Mfr Panjit International Inc.
Series -
Package Tape & Reel
Product Status Active
Technology Standard
Voltage - DC Reverse (Vr) (Max) 1000 V
Current - Average Rectified (Io) 1A
Voltage - Forward (Vf) (Max) @ If 1.1 V @ 1 A
Speed Standard Recovery >500ns, > 200mA (Io)
Current - Reverse Leakage @ Vr 1 µA @ 1000 V
Capacitance @ Vr, F 7pF @ 4V, 1MHz
Mounting Type Surface Mount
Package / Case DO-221AC, SMA Flat Leads
Supplier Device Package SMAF-C
Operating Temperature - Junction -55°C ~ 150°C
Base Product Number GS1
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Win Source Part Number 1368161-GS1MAFC_R1_00001
Ultra Librarian 3D Model Ultra Librarian GS1MAFC_R1_00001 CAD Model

Description

The GS1MAFC_R1_00001 is a surface mount standard rectifier diode manufactured by Panjit International Inc.

  • Maximum DC Reverse Voltage: 1000V
  • Average Rectified Current: 1A
  • Forward Voltage: 1.1V @ 1A
  • Package: SMA Flat Leads
  • Operating Temperature: -55°C to 150°C
  • REACH Compliance: Complies with REACH regulations
  • ECCN: EAR99
