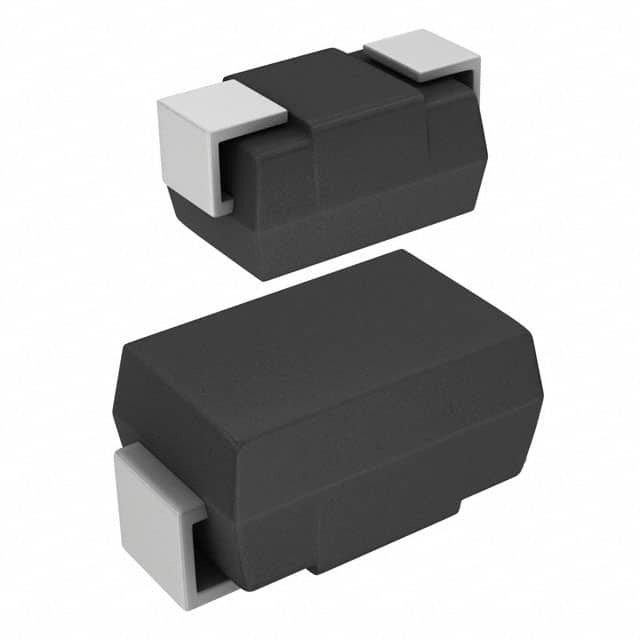

GS1BWG_R1_00001

Name: GS1BWG_R1_00001
Brand: Panjit
SKU: 1061170
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	GS1BWG_R1_00001
Manufacturer	Panjit
Catalog	Diodes, Rectifiers - Single
Description	SURFACE MOUNT GENERAL PURPOSE RE / Diode Standard 100 V 1A Surface Mount SMA (DO-214AC)
Datasheet	GS1BWG_R1_00001 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Discrete Semiconductor Products>Diodes - Rectifiers - Single
Mfr	Panjit International Inc.
Package	Tape & Reel
Diode Type	Standard
Voltage - DC Reverse (Vr) (Max)	100 V
Current - Average Rectified (Io)	1A
Voltage - Forward (Vf) (Max) @ If	1.1 V @ 1 A
Speed	Standard Recovery >500ns, > 200mA (Io)
Current - Reverse Leakage @ Vr	1 µA @ 100 V
Capacitance @ Vr, F	7pF @ 4V, 1MHz
Mounting	SMD (SMT)
Package / Case	DO-214AC, SMA
Supplier Device Package	SMA (DO-214AC)
Operating Temperature - Junction	-55°C ~ 150°C
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8541.10.0080
Other Names	3757-GS1BWG_R1_00001CT,3757-GS1BWG_R1_00001TR,3757-GS1BWG_R1_00001DKR
Standard Package	1,800
Win Source Part Number	1061170-GS1BWG_R1_00001
Ultra Librarian 3D Model	Ultra Librarian GS1BWG_R1_00001 CAD Model

Alternative Products

Description

The Panjit International Inc. 1061170-GS1BWG_R1_00001 diode is a standard recovery diode designed for use in rectifier applications. Bold the product name (e.g., BAV99S,135 → BAV99S,"135") and manufacturer (e.g., Nexperia USA Inc. → Nexperia USA Inc.).

Maximum DC Reverse Voltage: 100 V
Average Rectified Current: 1A
Forward Voltage: 1.1 V @ 1 A
Reverse Leakage Current: 1 µA @ 100 V
Capacitance: 7pF @ 4V and 1MHz
Package: DO-214AC, SMA
Temperature Range: -55°C to 150°C
RoHS Compliant: Yes
Packaging: Tape and reel
Units per Package: 1,800
