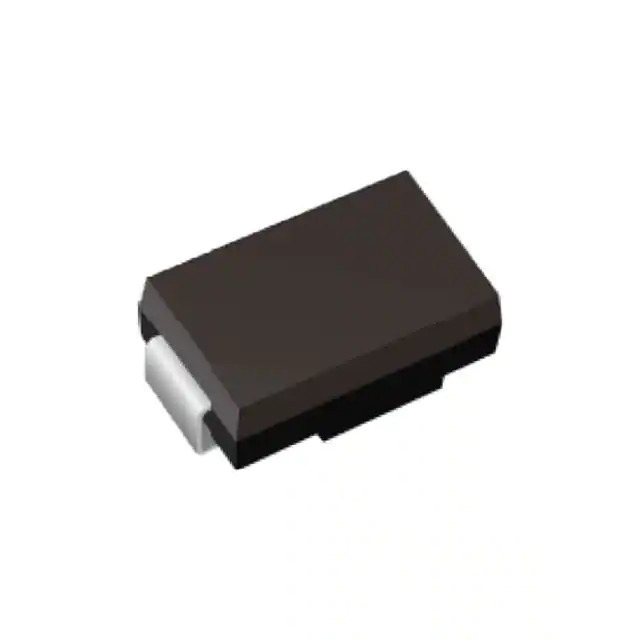

Same model may have multiple batches, images only for reference.
ES1B_R1_00001 Panjit
Same model may have multiple batches, images only for reference.

ES1B_R1_00001

Part No ES1B_R1_00001
Manufacturer Panjit
Catalog Diodes, Rectifiers - Single
Description DIODE GEN PURP 100V 1A SMA
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products - Diodes - Rectifiers - Single Diodes
Mfr Panjit International Inc.
Series -
Package Tape & Reel
Product Status Active
Technology Standard
Voltage - DC Reverse (Vr) (Max) 100 V
Current - Average Rectified (Io) 1A
Voltage - Forward (Vf) (Max) @ If 950 mV @ 1 A
Speed Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr) 35 ns
Current - Reverse Leakage @ Vr 1 µA @ 100 V
Capacitance @ Vr, F 7pF @ 4V, 1MHz
Mounting Type Surface Mount
Package / Case DO-214AC, SMA
Supplier Device Package SMA (DO-214AC)
Operating Temperature - Junction -55°C ~ 150°C
Base Product Number ES1B
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Win Source Part Number 1366833-ES1B_R1_00001
Ultra Librarian 3D Model Ultra Librarian ES1B_R1_00001 CAD Model

Description

The ES1B is a standard rectifier diode from Panjit International Inc.

  • Maximum Reverse Voltage: 100V
  • Average Rectified Current: 1A
  • Forward Voltage: 950mV @ 1A
  • Recovery Time: Fast, Less than 500ns
  • Reverse Recovery Time: 35ns
  • Reverse Leakage Current: 1μA @ 100V
  • Capacitance: 7pF @ 4V and 1MHz
  • Mounting Type: Surface Mount
  • Package/Case: DO-214AC (SMA)
  • Operating Temperature: -55°C to 150°C
