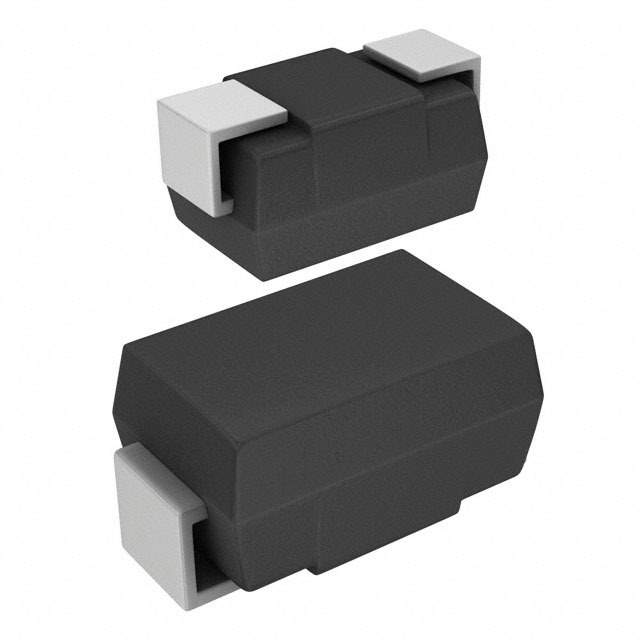

1SMA5931_R1_00001

Name: 1SMA5931_R1_00001
Brand: Panjit
SKU: 1153553
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	1SMA5931_R1_00001
Manufacturer	Panjit
Catalog	Diodes - Zener - Single
Description	SURFACE MOUNT SILICON ZENER DIOD / Zener Diode 18 V 1.5 W ±5% Surface Mount SMA (DO-214AC)
Datasheet	1SMA5931_R1_00001 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Discrete Semiconductor Products>Diodes - Zener - Single
Mfr	Panjit International Inc.
Package	Tape & Reel
Voltage - Zener (Nom) (Vz)	18 V
Tolerance	±5%
Power - Max	1.5 W
Impedance (Max) (Zzt)	12 Ohms
Current - Reverse Leakage @ Vr	1 µA @ 13.7 V
Temperature Range - Operating	-55°C ~ 150°C (TJ)
Mounting	SMD (SMT)
Package / Case	DO-214AC, SMA
Supplier Device Package	SMA (DO-214AC)
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8541.10.0050
Other Names	3757-1SMA5931_R1_00001CT,3757-1SMA5931_R1_00001DKR,3757-1SMA5931_R1_00001TR
Standard Package	1,800
Win Source Part Number	1153553-1SMA5931_R1_00001
Ultra Librarian 3D Model	Ultra Librarian 1SMA5931_R1_00001 CAD Model

Description

The Panjit International Inc. DO-214AC, SMA packaged Zener diode has a voltage tolerance of ±5% and a maximum power rating of 1.5 W.

Manufacturer: Panjit International Inc.
Voltage Tolerance: ±5%
Maximum Power Rating: 1.5 W
Reverse Leakage Current: 1 µA @ 13.7 V
Zener Voltage: 18 V
Maximum Impedance: 12 Ohms
Operating Temperature Range: -55°C to 150°C (TJ)
AEC-Q101 Compliant: Yes
ECCN: EAR99
Packaging: Tape and reel
Standard Package: 1,800
