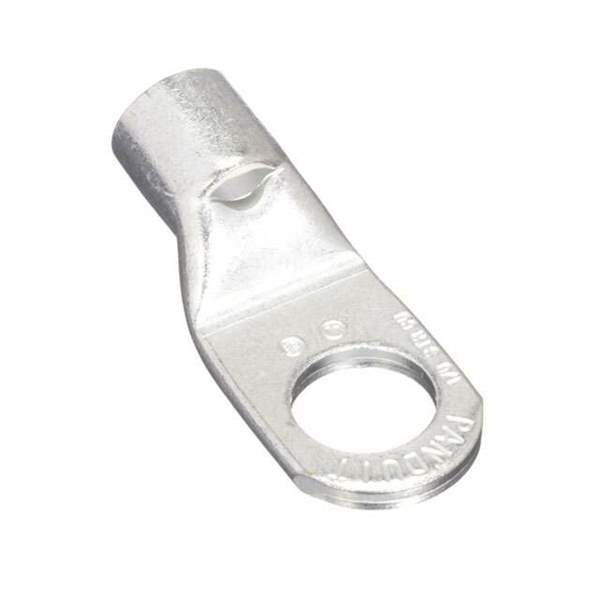

Same model may have multiple batches, images only for reference.

S4/0-12R-C

Get a Quote

Part No	S4/0-12R-C
Manufacturer	Panduit Corp
Catalog	Terminals
Datasheet	S4/0-12R-C Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Terminals - Ring Connectors
Mfr	Panduit Corp
Series	Pan-Term®
Package	Bulk
Product Status	Obsolete
Terminal Type	Flat Sided
Stud/Tab Size	1/2 Stud
Thickness	0.140" (3.56mm)
Width - Outer Edges	1.060" (26.92mm)
Length - Overall	2.500" (63.50mm)
Mounting Type	Free Hanging (In-Line)
Termination	Crimp, Funnel Opening
Wire Gauge	4/0 AWG
Insulation	Non-Insulated
Contact Material	Copper
Contact Finish	Tin
Other Names	298-15784,S4/0-12R-C
Standard Package	100
MSL Level	Not Applicable
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.90.4000
Win Source Part Number	1285187-S4/0-12R-C
Ultra Librarian 3D Model	Ultra Librarian S4/0-12R-C CAD Model

Alternative Products

Description

The Pan-Term ring connector from Panduit Corp is a non-insulated terminal type with a crimp, funnel opening termination style.

Stud Size: 1/2
Wire Gauge: 4/0 AWG
Contact Material: copper
Contact Finish: tin
Thickness: 0.140"
Width: 1.060"
Overall Length: 2.500"
Mounting: free hanging (in-line)
Package: 100
