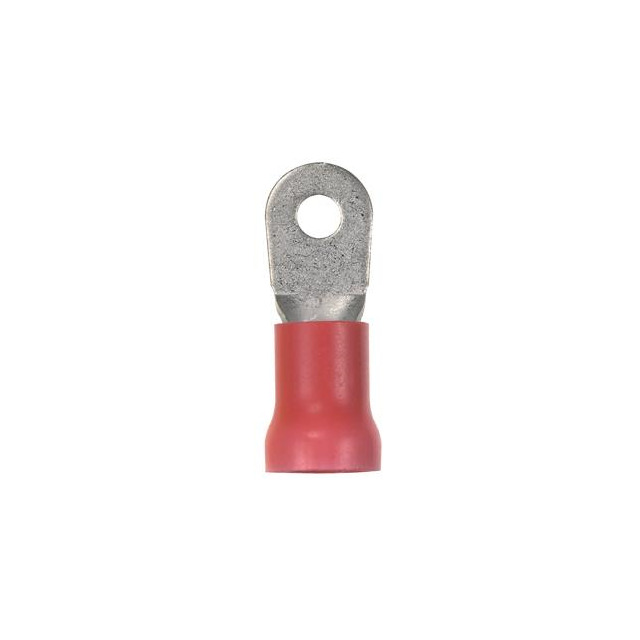

Same model may have multiple batches, images only for reference.
PV18-56R-MY Panduit Corp – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

PV18-56R-MY

Part No PV18-56R-MY
Manufacturer Panduit Corp
Catalog Terminals
Description CONN RING CIRC 18-22AWG #5/16
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Terminal Type Circular
Stud/Tab Size 5/16 Stud
Thickness 0.032" (0.81mm)
Width - Outer Edges 0.460" (11.68mm)
Length - Overall 1.110" (28.19mm)
Mounting Type Free Hanging (In-Line)
Termination Crimp
Wire Gauge 18-22 AWG
Insulation Insulated
Features Brazed Seam, Serrated Termination
Color Red
Contact Material Copper
Contact Finish Tin
Package Bulk
Supply and Demand Status Shortage
Win Source Part Number 1534483-PV18-56R-MY
Ultra Librarian 3D Model Ultra Librarian PV18-56R-MY CAD Model
