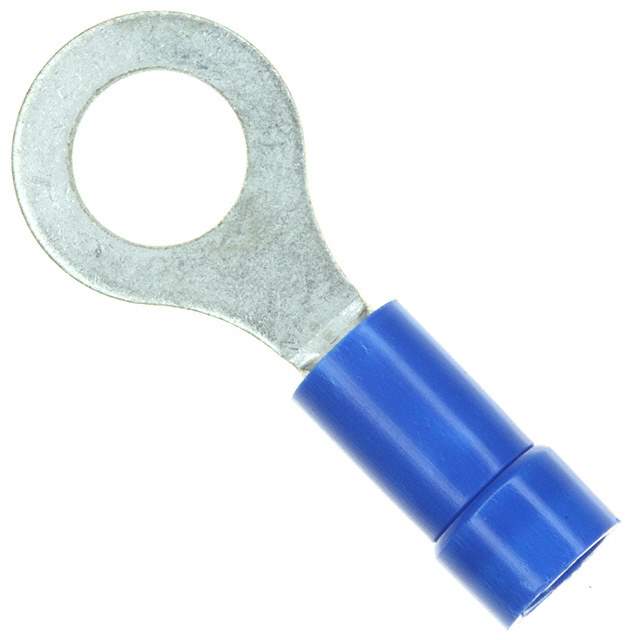

Same model may have multiple batches, images only for reference.

PV14-14R-M

Name: PV14-14R-M
Brand: Panduit Corp
SKU: 997776
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	PV14-14R-M
Manufacturer	Panduit Corp
Catalog	Terminals
Description	CONN RING CIRC 14-16AWG #1/4 / Ring Terminal Connector 1/4 Stud Circular 14-16 AWG Crimp
Datasheet	PV14-14R-M Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Terminals - Ring Connectors
Mfr	Panduit Corp
Series	Pan-Term®
Package	Bulk
Terminal Type	Circular
Stud/Tab Size	1/4 Stud
Thickness	0.032" (0.81mm)
Width - Outer Edges	0.460" (11.68mm)
Length - Overall	1.120" (28.45mm)
Mounting Type	Free Hanging (In-Line)
Termination	Crimp
Wire Gauge	14-16 AWG
Insulation	Insulated
Features	Brazed Seam
Color	Blue
Contact Material	Copper
Contact Finish	Tin
Insulation Diameter	0.170" (4.32mm)
Material - Insulation	Vinyl
Base Product Number	PV14
MSL Level	Not Applicable
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.90.4000
Other Names	PV1414RM,298-10077,PV14-14R-M-ND
Standard Package	1,000
Win Source Part Number	997776-PV14-14R-M
Ultra Librarian 3D Model	Ultra Librarian PV14-14R-M CAD Model

Alternative Products

Description

The PV14-14R-M is a circular ring terminal connector from the Pan-Term series by Panduit Corp.

Brazed Seam: Yes
Termination: Crimp
Contact Finish: Tin
Insulation: Vinyl
Wire Gauge: 14-16 AWG
Overall Length: 1.120 inches (28.45mm)
Outer Edges Width: 0.460 inches (11.68mm)
Thickness: 0.032 inches (0.81mm)
Insulation Diameter: 0.170 inches (4.32mm)
Stud/Tab Size: 1/4 stud
Mounting: Free hanging (in-line)
Voltage Rating: 5000Vrms
ECCN: EAR99
HTSUS Code: 8536.90.4000
