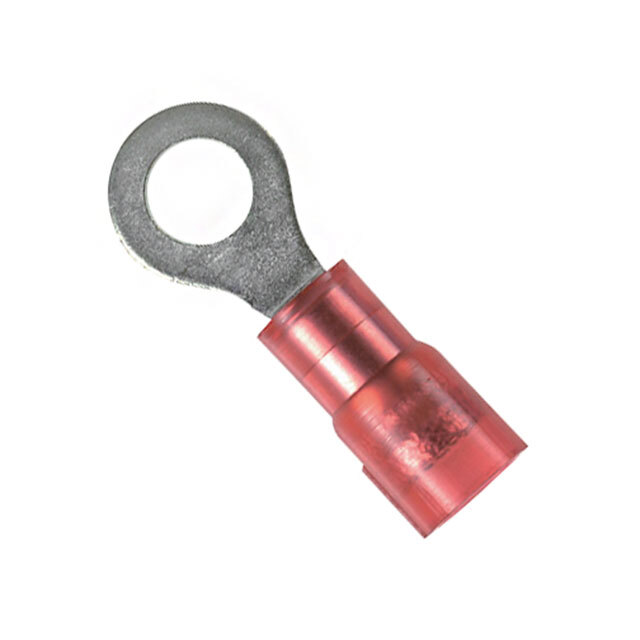

Same model may have multiple batches, images only for reference.
PNF14-56R-C Panduit Corp – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

PNF14-56R-C

Part No PNF14-56R-C
Manufacturer Panduit Corp
Catalog Terminals
Description CONN RING CIRC 14-16AWG #5/16
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Product Status Obsolete
Terminal Type Circular
Stud/Tab Size 5/16 Stud
Thickness 0.032" (0.81mm)
Width - Outer Edges 0.460" (11.68mm)
Length - Overall 1.060" (26.92mm)
Mounting Type Free Hanging (In-Line)
Termination Crimp
Wire Gauge 14-16 AWG
Insulation Insulated
Features Serrated Termination
Color Blue
Contact Material Copper
Contact Finish Tin
Package Bulk
Supply and Demand Status Shortage
Win Source Part Number 1534289-PNF14-56R-C
Ultra Librarian 3D Model Ultra Librarian PNF14-56R-C CAD Model
