Same model may have multiple batches, images only for reference.

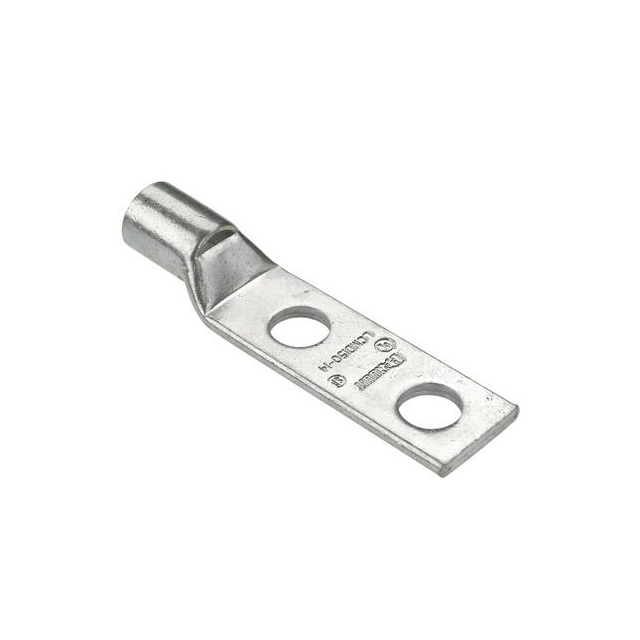

LCMD35-8CD-Q Real Image
Same model may have multiple batches, images only for reference.

LCMD35-8CD-Q

Part No LCMD35-8CD-Q
Manufacturer Panduit Corp
Catalog Rectangular Connectors
Description CONN TERM RECT RING 35MM #M8 / Lug Terminal 2AWG Copper 67mm Tin
Datasheet
LCMD35-8CD-Q Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer Panduit Corp
Series Pan-Lug
Packaging Bulk
Terminal Type Ring, Tubular
Stud/Tab Size M8 Stud
Terminal Style Two Stud Holes
Tab Thickness 0.081" (2.05mm)
Length - Overall 2.638" (67.00mm)
Width - Outer Edges 0.610" (15.49mm)
Mounting Free Hanging (In-Line)
Termination Crimp, Barrel
Wire Gauge 35mm2
Insulation Non-Insulated
Contact Finish Tin
Contact Material Copper
Diameter - Barrel ID 0.323" (8.20mm)
Diameter - Barrel OD 0.409" (10.39mm)
Win Source Part Number 772307-LCMD35-8CD-Q
Popularity Medium
Supply and Demand Status Limited
Family Name LCMD
Introduction Date June 08, 2011
ECCN EAR99
Country of Origin India
Estimated EOL Date 2025
Ultra Librarian 3D Model Ultra Librarian LCMD35-8CD-Q CAD Model

Description

The Panduit Corp LCMD35-8CD-Q is a non-insulated crimp barrel terminal connector from Panduit Corp.

  • Operating Temperature Range: -55°C to 302°C
  • Wire Gauge: 35mm2
  • Stud/Tab Size: M8 stud
  • Series: Pan-Lug
  • Terminal Style: Two-Stud Hole
  • Mounting Type: Free Hanging (In-Line)
  • Packaging: Bulk
  • Contact Material: Copper
  • Contact Finish: Tin
