Same model may have multiple batches, images only for reference.

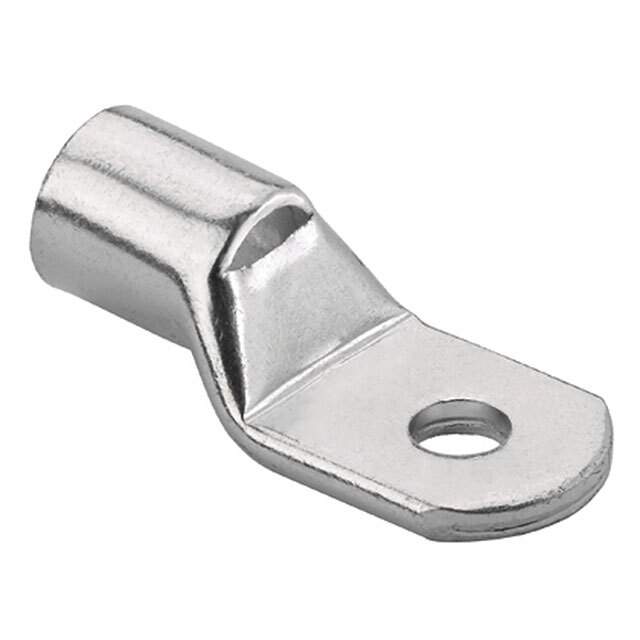

LCMA630-16-1 Real Image
Same model may have multiple batches, images only for reference.

LCMA630-16-1

Part No LCMA630-16-1
Manufacturer Panduit Corp
Catalog Terminals
Description CONN TERM RECT RING 630MM #M16 / Ring Terminal Connector M16 Stud Flat Sided, Tubular (Battery Lugs) 630mm² Crimp
Datasheet
LCMA630-16-1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Terminals - Ring Connectors
Mfr Panduit Corp
Series Pan-Lug®
Package Bulk
Terminal Type Flat Sided, Tubular (Battery Lugs)
Stud/Tab Size M16 Stud
Thickness 0.370" (9.40mm)
Width - Outer Edges 2.480" (62.99mm)
Length - Overall 5.157" (131.00mm)
Mounting Type Free Hanging (In-Line)
Termination Crimp
Wire Gauge 630mm²
Insulation Non-Insulated
Contact Material Copper
Contact Finish Tin
Base Product Number LCMA
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.90.4000
Other Names -3255-LCMA630-16-1,07498376981
Standard Package 1
Win Source Part Number 1174735-LCMA630-16-1
Ultra Librarian 3D Model Ultra Librarian LCMA630-16-1 CAD Model

Description

The Pan-Lug® LCMA630-16-1 is a terminal connector with a tubular and flat-sided design.

  • Product Name: Pan-Lug® LCMA630-16-1
  • Manufacturer:
  • Termination: crimp termination
  • Contact Material: copper with tin finish
  • Wire Gauge: 630mm²
  • Stud/Tab Size: M16 stud
  • Insulation: non-insulated
  • Thickness: 0.370" (9.40mm)
  • Width: 2.480" (62.99mm)
  • Length: 5.157" (131.00mm)
  • Packaging: bulk
  • Application: connectors and interconnects terminals
