Same model may have multiple batches, images only for reference.

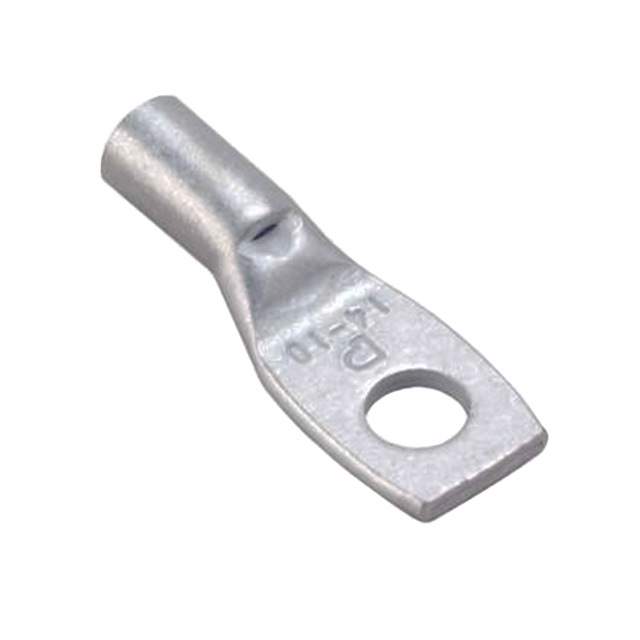

LCA10-56-L Real Image
Same model may have multiple batches, images only for reference.

LCA10-56-L

Part No LCA10-56-L
Manufacturer Panduit Corp
Catalog Terminals
Description CONN TERM RECT TONG 10 AWG #5/16
Datasheet
LCA10-56-L Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer Panduit Corp
Packaging Bulk
Status Active
Terminal Type Rectangular Tongue
Stud/Tab Size 5/16 Stud
Terminal Style Single Stud Hole
Tab Thickness 0.040" (1.02mm)
Length - Overall 1.280" (32.51mm)
Width - Outer Edges 0.540" (13.72mm)
Mounting Free Hanging (In-Line)
Termination Crimp, Barrel
Wire Gauge 10 AWG
Insulation Non-Insulated
Contact Finish Electro-Tin
Diameter - Barrel ID 0.130" (3.30mm)
Diameter - Barrel OD 0.220" (5.59mm)
Diameter - Ring ID 0.340" (8.64mm)
Win Source Part Number 115622-LCA10-56-L
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian LCA10-56-L CAD Model

Description

The Panduit Corp LCA10-56-L is a non-insulated, single stud hole, rectangular tongue terminal, suitable for 10 AWG wire gauge.

  • Tab Thickness: 0.040" (1.02mm)
  • Stud/Tab Size: 5/16 stud
  • Diameter of Barrel ID: 0.130" (3.30mm)
  • Diameter of Barrel OD: 0.220" (5.59mm)
  • Width of Outer Edges: 0.540" (13.72mm)
  • Overall Length: 1.280" (32.51mm)
  • Mounting Type: Free hanging (in-line)
  • Termination: Crimp, barrel
  • Contact Finish: Electro-tin
  • Packaging: Bulk
  • Suitable for Use In: Connectors and interconnects
