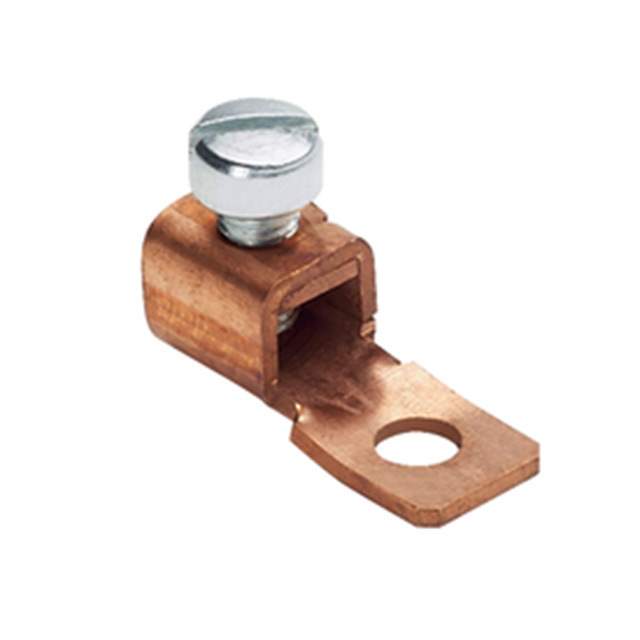

Same model may have multiple batches, images only for reference.

CXS35-36-C

Name: CXS35-36-C
Brand: Panduit Corp
SKU: 1026394
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	CXS35-36-C
Manufacturer	Panduit Corp
Catalog	Rectangular Connectors
Description	CONN TERM RECT LUG 6-14AWG #3/16 / Terminal Connector Rectangular Lug, Grounding 6-14 AWG 3/16 Stud
Datasheet	CXS35-36-C Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Terminals - Rectangular Connectors
Mfr	Panduit Corp
Series	Pan-Lug®
Package	Bulk
Terminal Type	Lug, Grounding
Stud/Tab Size	3/16 Stud
Terminal Style	Single Stud Hole
Tab Thickness	0.050" (1.27mm)
Length - Overall	1.080" (27.43mm)
Width - Outer Edges	0.380" (9.65mm)
Mounting Type	Free Hanging (In-Line)
Termination	Screw
Wire Gauge	6-14 AWG
Insulation	Non-Insulated
Features	With Screw
Contact Material	Copper
Base Product Number	CXS35
MSL Level	Not Applicable
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.90.4000
Other Names	298-11609,CXS35-36-C-ND
Standard Package	100
Win Source Part Number	1026394-CXS35-36-C
Ultra Librarian 3D Model	Ultra Librarian CXS35-36-C CAD Model

Alternative Products

Description

The Panduit Corp CXS35-36-C is a non-insulated, grounding terminal lug connector that can accommodate wire gauges of 6-14 AWG.

Terminal Style: Single Stud Hole
Mounting Type: Free Hanging (In-Line)
Material: Copper
Stud Size: 3/16
Width: 0.380 inches (9.65mm)
Overall Length: 1.080 inches (27.43mm)
Package Type: Bulk
Standard Package: 100
Alternative Parts: 2-33457-2, CXS35-36T-C, 19221-0239, CS25-18SL-CY, CS35-36SL-CY, and 19221-0248CXS35-36-C
ECCN: EAR99
REACH: Unaffected
