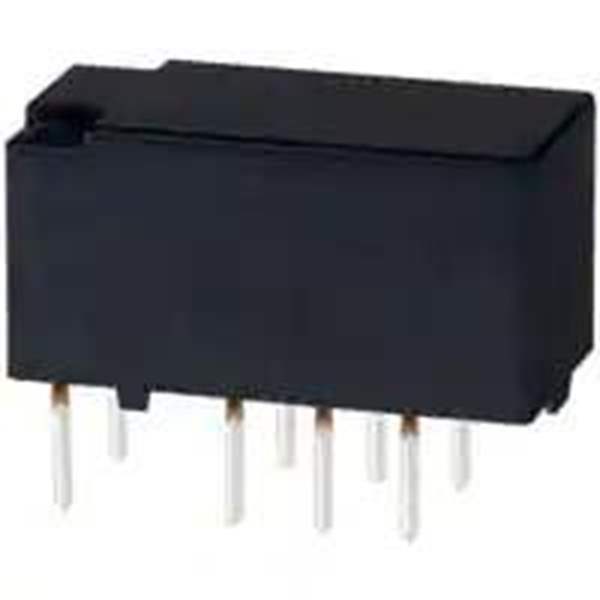

TX2-L-3V Real Image
Same model may have multiple batches, images only for reference.

TX2-L-3V

Part No TX2-L-3V
Manufacturer Panasonic
Catalog Signal Relays, Up to 2 Amps
Description RELAY TELECOM DPDT 2A 3VDC / Telecom Relay DPDT (2 Form C) Through Hole
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays - Signal Relays, Up to 2 Amps
Mfr Panasonic
Series TX
Package Tube
Product Status Active
Mounting Type Through Hole
Coil Voltage 3VDC
Contact Form DPDT (2 Form C)
Contact Rating (Current) 2 A
Switching Voltage 220VDC - Max
Coil Current 33.3 mA
Coil Type Latching, Single Coil
Termination Style PC Pin
Seal Rating Sealed - Fully
Must Operate Voltage 2.25 VDC
Operate Time 4 ms
Release Time 4 ms
Temperature Range - Operating -40°C ~ 85°C
Contact Material Silver (Ag), Gold (Au)
Relay Type Telecom
Coil Resistance 90 Ohms
Base Product Number TX2-L
Standard Package 40 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.41.0020
Win Source Part Number 937932-TX2-L-3V
Ultra Librarian 3D Model Ultra Librarian TX2-L-3V CAD Model

Description

The 937932-TX2-L-3V is a signal relay from Panasonic's TX series.

  • Contact Form: DPDT (2 Form C)
  • Coil Voltage: 3VDC
  • Contact Rating: 2A
  • Switching Voltage: 220VDC maximum
  • Coil Resistance: 90 Ohms
  • Coil Current: 33.3 mA
  • Operate Time: 4 ms
  • Release Time: 4 ms
  • Sealed: Fully
  • Mounting Type: Through-Hole
  • Operating Temperature: -40°C to 85°C
  • Category: Telecom Relay
