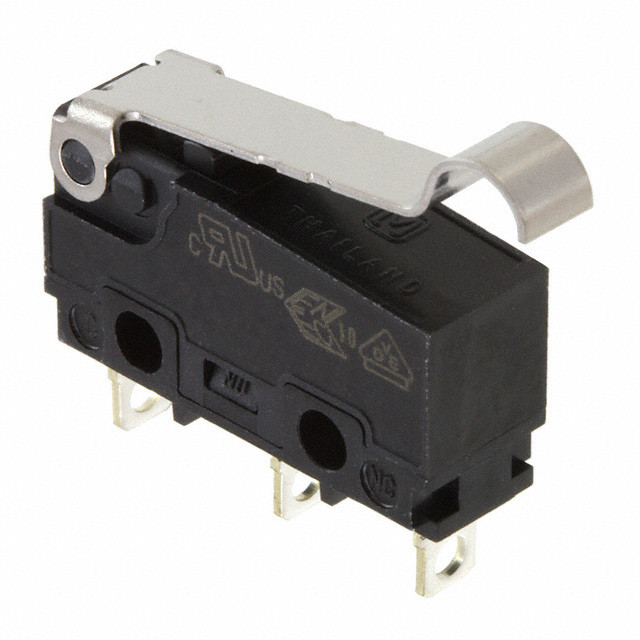

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Switches
Family Snap Action, Limit Switches
Manufacturer Panasonic-Electric-Works
Series AVT3
Packaging Bulk
Circuit SPDT
Switch Function On-Mom
Current Rating 3A (AC/DC)
Voltage Rating - AC 125V
Voltage Rating - DC 30V
Actuator Type Lever, Roller
Mounting Style Chassis Mount
Termination Style Solder Lug
Operating Force, Torque 40gf
Release Force 3.5gf
Pretravel 0.100" (2.5mm)
Differential Travel 0.020" (0.5mm)
Overtravel 0.030" (0.76mm)
Operating Position 0.571" (14.5mm)
Mechanical Life 500,000 Cycles
Electrical Life 50,000 Cycles
Operating Temperature Range -25°C ~ 85°C
Win Source Part Number 212524-T3254
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian T3254 CAD Model

Description

The T3254 from Panasonic-Electric-Works is a snap action, limit switch that is designed for use in a variety of applications.

  • Current Rating: 3A (AC/DC)
  • Voltage Rating: 125V (AC) and 30V (DC)
  • Circuit: SPDT
  • Switch Function: On-Mom
  • Actuator Type: Lever, Roller
  • Electrical Life: 50,000 cycles
  • Mechanical Life: 500,000 cycles
  • Operating Force, Torque: 40gf
  • Release Force: 3.5gf
  • Pretravel: 0.100" (2.5mm)
  • Differential Travel: 0.020" (0.5mm)
  • Overtravel: 0.030" (0.76mm)
  • Operating Position: 0.571" (14.5mm)
  • Supply and Demand Status: Balanced
