Same model may have multiple batches, images only for reference.

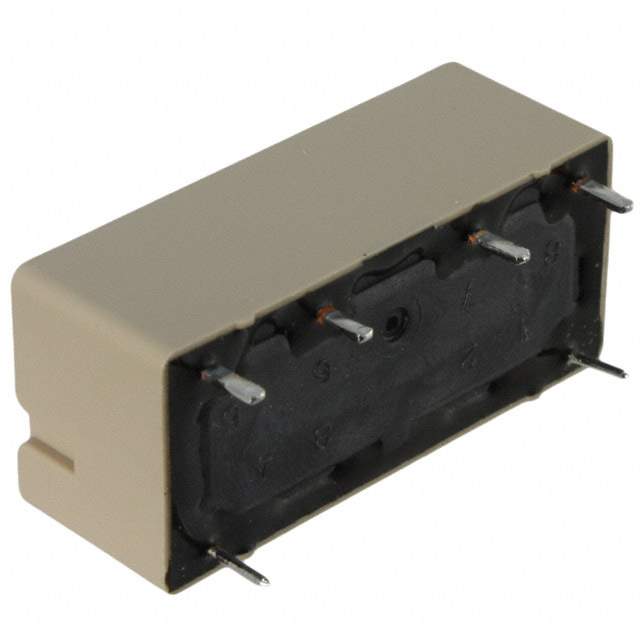

ST2-DC24V-F Real Image
Same model may have multiple batches, images only for reference.

ST2-DC24V-F

Part No ST2-DC24V-F
Manufacturer Panasonic
Catalog Power Relays, Over 2 Amps
Description RELAY GEN PURPOSE DPST 8A 24V
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Relays
Manufacturer Panasonic Electric Works
Packaging Tube/Rail
Status Active
Relay Type General Purpose
Coil Type Non Latching
Coil Current 10mA
Coil Voltage 24VDC
Contact Form DPST (2 Form A)
Contact Rating (Current) 8A
Switching Voltage 380VAC, 250VDC - Max
Turn On Voltage (Max) 19.2 VDC
Turn Off Voltage (Min) 2.4 VDC
Operate Time 15ms
Release Time 10ms
Features Sealed - Fully
Mounting Through Hole
Termination Style PC Pin
Coil Power 240 mW
Coil Resistance 2.4 kOhms
Temperature Range - Operating -40°C to 60°C
Win Source Part Number 142574-ST2-DC24V-F
Popularity Medium
Supply and Demand Status Balance
Application Field Used in Industrial
Quantity per package 50
Ultra Librarian 3D Model Ultra Librarian ST2-DC24V-F CAD Model

Description

The Panasonic Electric Works ST2-DC24V-F relay is a general-purpose relay that is used in industrial applications.

  • Contact Form: DPST (2 Form A)
  • Features: Fully sealed
  • Coil Voltage: 24VDC
  • Coil Resistance: 2.4 kOhms
  • Switching Current: Up to 8A
  • Switching Voltage: 380VAC and 250VDC
  • Turn-On Voltage (Max): 19.2 VDC
  • Turn-Off Voltage (Min): 2.4 VDC
  • Operating Temperature: -40°C to 60°C
  • Mounting: Through hole
  • Package: 50
