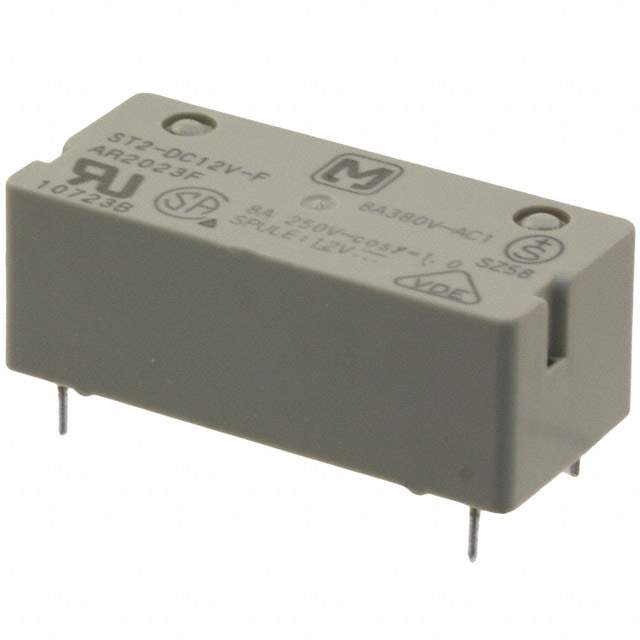

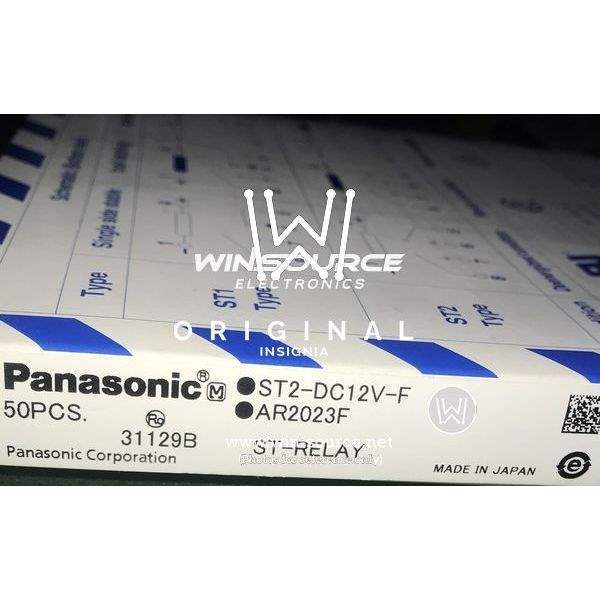

ST2-DC12V-F Panasonic ST2-DC12V-F Real Image ST2-DC12V-F label picture 2 ST2-DC12V-F real image ST2-DC12V-F real image 2
Same model may have multiple batches, images only for reference.
ST2-DC12V-F Panasonic ST2-DC12V-F Real Image ST2-DC12V-F label picture 2 ST2-DC12V-F real image ST2-DC12V-F real image 2
ST2-DC12V-F Panasonic ST2-DC12V-F Real Image ST2-DC12V-F label picture 2 ST2-DC12V-F real image ST2-DC12V-F real image 2
Same model may have multiple batches, images only for reference.

ST2-DC12V-F

Part No ST2-DC12V-F
Manufacturer Panasonic
Catalog Power Relays, Over 2 Amps
Description RELAY GEN PURPOSE DPST 8A 12V
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Relays
Manufacturer Panasonic Electric Works
Packaging Tube/Rail
Status Active
Relay Type General Purpose
Coil Type Non Latching
Coil Current 20mA
Coil Voltage 12VDC
Contact Form DPST (2 Form A)
Contact Rating (Current) 8A
Switching Voltage 380VAC, 250VDC - Max
Turn On Voltage (Max) 9.6 VDC
Turn Off Voltage (Min) 1.2 VDC
Operate Time 15ms
Release Time 10ms
Features Sealed - Fully
Mounting Through Hole
Termination Style PC Pin
Coil Power 240 mW
Coil Resistance 600 Ohms
Temperature Range - Operating -40°C to 60°C
Win Source Part Number 212184-ST2-DC12V-F
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Application Field Used in Industrial
Family Name ST
Introduction Date June 01, 2006
ECCN EAR99
Country of Origin Japan
Estimated EOL Date 2023
Quantity per package 50
Ultra Librarian 3D Model Ultra Librarian ST2-DC12V-F CAD Model

Description

This electronic component is a general-purpose relay manufactured by Panasonic Electric Works.

  • Win Source Part Number: 212184-ST2-DC12V-F
  • Packaging: Tube/Rail
  • Termination Style: PC Pin
  • Features: Fully sealed
  • Contact Form: DPST (2 Form A)
  • Mounting: Through Hole
  • Coil Resistance: 600 Ohms
  • Coil Current: 20mA
  • Operate Time: 15ms
  • Coil Type: Non-Latching
  • Coil Voltage: 12VDC
  • Contact Rating (Current): 8A
  • Switching Voltage: 380VAC, 250VDC - Max
  • Turn On Voltage (Max): 9.6 VDC
  • Turn Off Voltage (Min): 1.2 VDC
  • Release Time: 10ms
  • Coil Power: 240 mW
  • Popularity: High
  • Demand: High in the industrial field
  • Supply and Demand Status: Balanced
  • Package: 50
