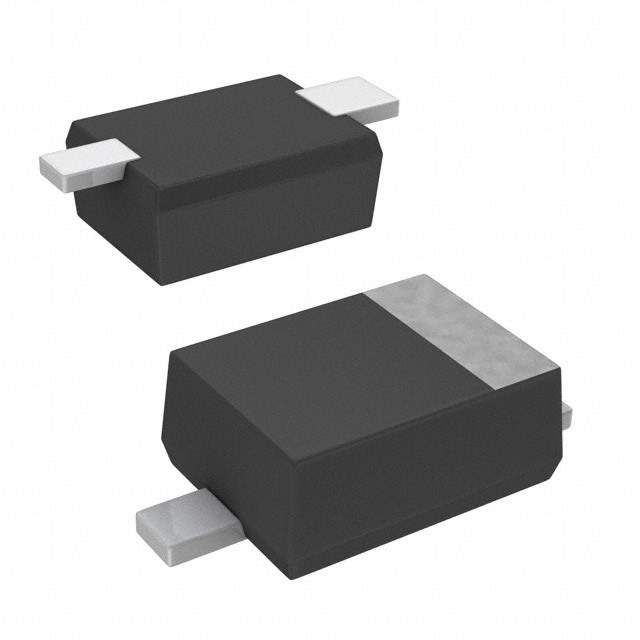

MAZ8240GML

Part No MAZ8240GML
Manufacturer Panasonic
Catalog Diodes - Zener - Single
Description DIODE ZENER 24V 150MW SMINI2
Datasheet
MAZ8240GML Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Panasonic Electronic Components
Packaging Reel - TR
Status Obsolete(EOL)
Voltage - Zener (Nom) (Vz) 24V
Tolerance ±6%
Maximum Power Dissipation 150mW
Impedance (Max) (Zzt) 100 Ohm
Current - Reverse Leakage @ Vr 50nA @ 19V
Voltage - Forward (Vf) (Max) @ If 1V @ 10mA
Mounting SMD (SMT)
Case / Package SMini2-F3
Win Source Part Number 106742-MAZ8240GML
Ultra Librarian 3D Model Ultra Librarian MAZ8240GML CAD Model

Description

The Panasonic Electronic Components MAZ8240GML is an SMD (SMT) zener diode with a voltage rating of 24V and a maximum power dissipation of 150mW.

  • Forward Voltage: 1V @ 10mA
  • Reverse Leakage Current: 50nA @ 19V
  • The zener diode has a tolerance of ±6% and an impedance of 100 ohms.
  • It is packaged on a reel and is part of the SMini2-F3 series.
  • This zener diode is obsolete (EOL) and is no longer recommended for new designs.
