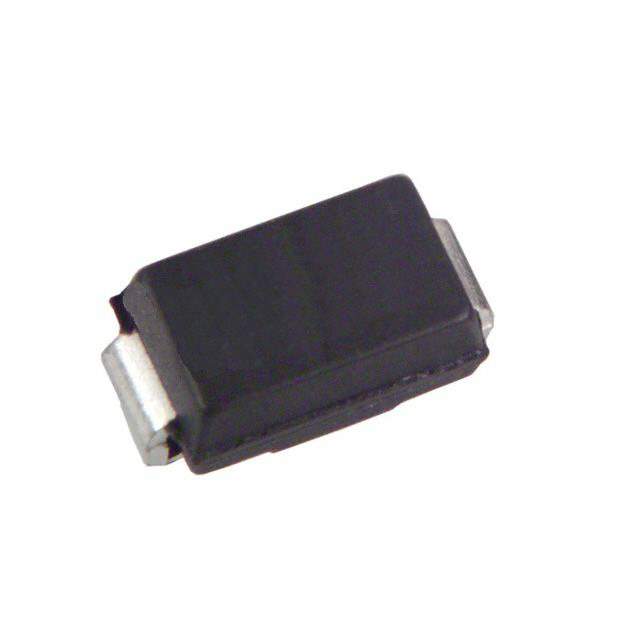

MA2Q73500L Real Image
Same model may have multiple batches, images only for reference.

MA2Q73500L

Part No MA2Q73500L
Manufacturer Panasonic
Catalog Diodes, Rectifiers - Single
Description Diode Schottky 30V 1A 2-Pin NMiniP2-J1 / DIODE SCHOTTKY 30V 1A NMINIP2
Datasheet
MA2Q73500L Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Panasonic Electronic Components
Packaging Reel package
Part Status Obsolete(EOL)
Diode Type Schottky
Voltage - DC Reverse (Vr) (Maximum) 30V
Current - Average Rectified (Io) 1A
Voltage - Forward (Vf) (Maximum) @ If 500mV @ 1A
Speed Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) 30ns
Current - Reverse Leakage @ Vr 1mA @ 30V
Capacitance @ Vr, F 50pF @ 10V, 1MHz
Mounting SMD
Package DO-214BA
Manufacturer Package NMiniP2-J1
Operating Temperature - Junction -40°C ~ 125°C
Win Source Part Number 785164-MA2Q73500L
Popularity Medium
Supply and Demand Status Limited
Family Name MA2Q735
Introduction Date March 16, 2000
ECCN EAR99
Estimated EOL Date Obsolete / End of life
Ultra Librarian 3D Model Ultra Librarian MA2Q73500L CAD Model

Description

The Panasonic Electronic Components 785164-MA2Q73500L is a Schottky diode manufactured by Panasonic Electronic Components.

  • Package: DO-214BA
  • Forward Voltage: 500mV @ 1A
  • Maximum DC Reverse Voltage: 30V
  • Fast Recovery: 200mA (Io)
  • Reverse Recovery Time: 30ns
  • Capacitance: 50pF @ 10V, 1MHz
  • Operating Temperature: -40°C ~ 125°C
  • Status: Obsolete (EOL)
  • Alternative Parts: BYG90-40, U1FWJ44NTE12L, U1FWJ44N(TE12L,PP), U1FWJ44N(TE12R,Q)
