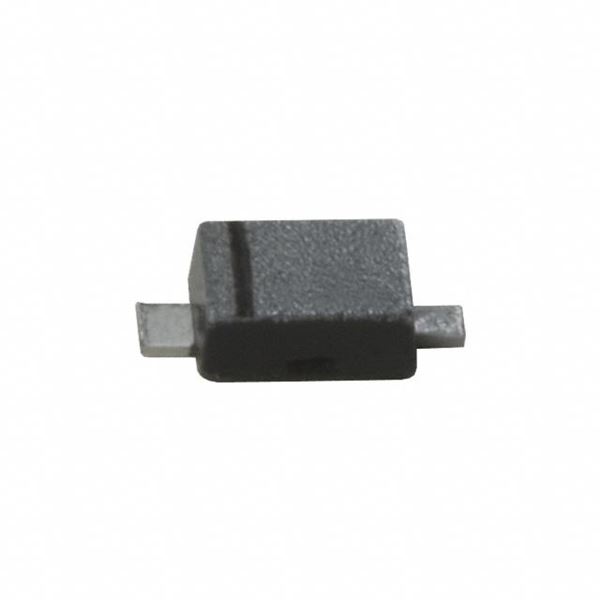

MA2J7290GL Panasonic
Same model may have multiple batches, images only for reference.

MA2J7290GL

Part No MA2J7290GL
Manufacturer Panasonic
Catalog Diodes, Rectifiers - Single
Description DIODE SCHOTTKY 30V 200MA SMINI2
Datasheet
MA2J7290GL Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Panasonic Electronic Components
Packaging Reel - TR
Status Obsolete(EOL)
Diode Type Schottky
Voltage - DC Reverse (Vr) (Max) 30V
Current - Average Rectified (Io) 200mA
Voltage - Forward (Vf) (Max) @ If 550mV @ 200mA
Reverse Recovery Time (trr) 3ns
Current - Reverse Leakage @ Vr 50μA @ 30V
Capacitance @ Vr, F 30pF @ 0V, 1MHz
Mounting SMD (SMT)
Case / Package SMini2-F3
Operating Temperature - Junction 150°C (Max)
Win Source Part Number 109133-MA2J7290GL
Ultra Librarian 3D Model Ultra Librarian MA2J7290GL CAD Model

Description

The Panasonic Electronic Components Diode (Win Source Part Number: 109133-MA2J7290GL) is a Schottky diode used in various electronic circuits. It is a reliable and accurate device suitable for applications such as power supplies, voltage regulators, and inverters. It has the following specifications:

  • Maximum Reverse Voltage: 30V
  • Average Rectified Current: Not specified
  • Forward Voltage: Not specified
  • Reverse Recovery Time: Not specified
  • Capacitance: Not specified
  • Operating Temperature Range: Not specified
  • Package: SMini2-F3
  • Status: Obsolete (EOL)
  • Manufacturer: Panasonic Electronic Components
  • Use: Discrete semiconductor products
