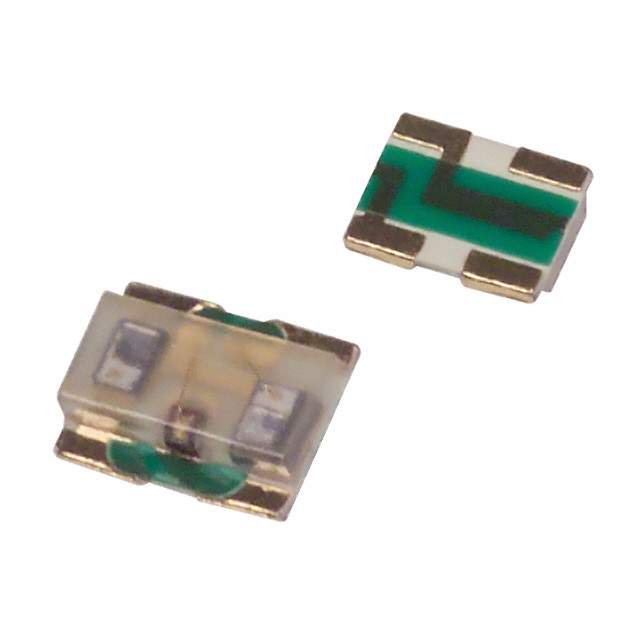

LNJ717W80RA1 Real Image
Same model may have multiple batches, images only for reference.

LNJ717W80RA1

Part No LNJ717W80RA1
Manufacturer Panasonic
Catalog LED Indication - Discrete
Description LED BL/GRN/ORG 4SMD
Datasheet
LNJ717W80RA1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Optoelectronics
Manufacturer Panasonic Electronic Components
Packaging Reel - TR
Status Obsolete(EOL)
Color Blue, Green, Orange
Configuration Common Anode
Millicandela Rating 30mcd Blue, 85mcd Green, 45mcd Orange
Lens Style/Size Rectangle with Flat Top, 2.10mm x 1.15mm
Forward Voltage 3.1V Blue, 3.1V Green, 1.95V Orange
Current - Test 5mA Blue, 5mA Green, 10mA Orange
Mounting SMD (SMT)
Wavelength - Dominant 472nm Blue, 535nm Green, 605nm Orange
Wavelength - Peak 470nm Blue, 525nm Green, 615nm Orange
Case / Package TSS Type LED
Height (Max) 0.65mm
Win Source Part Number 071707-LNJ717W80RA1
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian LNJ717W80RA1 CAD Model

Description

The Panasonic Electronic Components LNJ717W80RA1 is a TSS type LED with a common anode configuration. The viewing angle and lens color/transparency are unspecified.

  • Color: Blue, Green, Orange
  • Millicandela Rating: 30mcd (blue), 85mcd (green), 45mcd (orange)
  • Forward Voltage: 3.1V (blue, green), 1.95V (orange)
  • Wavelength-Dominant: 472nm (blue), 535nm (green), 605nm (orange)
  • Wavelength-Peak: 470nm (blue), 525nm (green), 615nm (orange)
  • Shape: Rectangular with a flat top
  • Dimensions: 2.10mm x 1.15mm
  • Current-Test: 5mA (blue, green), 10mA (orange)
  • Supply and Demand Status: Balanced
