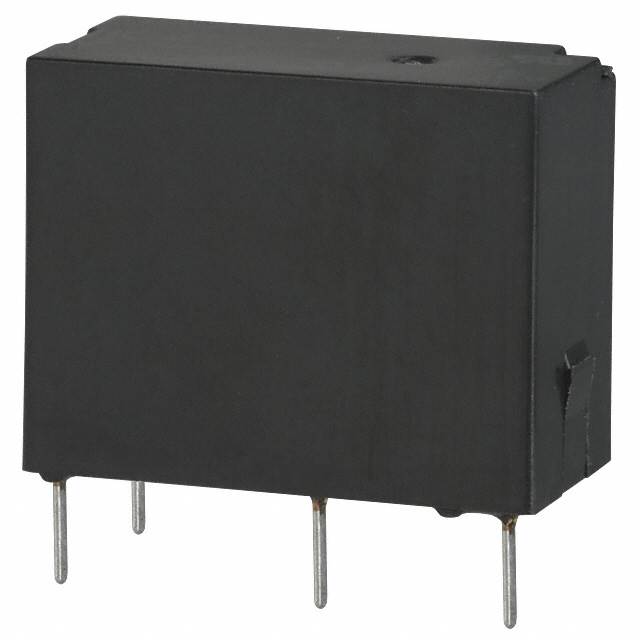

JQ1AP-5V-F Panasonic
Same model may have multiple batches, images only for reference.

JQ1AP-5V-F

Part No JQ1AP-5V-F
Manufacturer Panasonic
Catalog Power Relays, Over 2 Amps
Description RELAY GEN PURPOSE SPST 10A 5V
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Relays
Manufacturer Panasonic Electric Works
Packaging Bulk
Status Obsolete(EOL)
Relay Type General Purpose
Coil Type Non Latching
Coil Current 40mA
Coil Voltage 5VDC
Contact Form SPST-NO (1 Form A)
Contact Rating (Current) 10A
Switching Voltage 250VAC, 110VDC - Max
Turn On Voltage (Max) 4 VDC
Turn Off Voltage (Min) 0.25 VDC
Operate Time 20ms
Release Time 10ms
Features Insulation - Class E
Mounting Through Hole
Termination Style PC Pin
Coil Power 200 mW
Coil Resistance 125 Ohms
Temperature Range - Operating -40°C to 70°C
Win Source Part Number 132559-JQ1AP-5V-F
Popularity Medium
Supply and Demand Status Limited
Quantity per package 100
Ultra Librarian 3D Model Ultra Librarian JQ1AP-5V-F CAD Model

Description

This Panasonic Electric Works relay is a high-quality product that is ideal for use in a range of electronic devices.

  • Manufacturer: Panasonic Electric Works
  • Coil Voltage: 5VDC
  • Contact Rating (Current): 10A
  • Package: Bulk
  • Mounting: Through-hole
  • Contact Form: SPST-NO (1 Form A)
  • Coil Resistance: 125 Ohms
  • Operating Temperature: -40°C to 70°C
  • Quantity per package: 100
