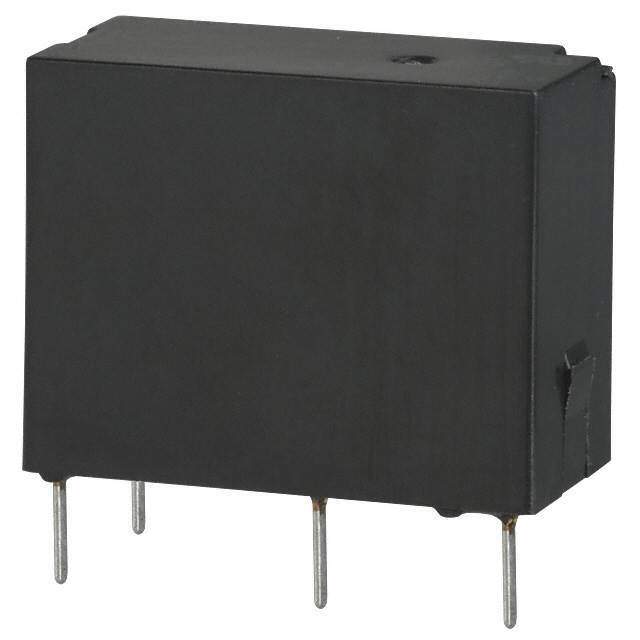

JQ1-24V Real Image
Same model may have multiple batches, images only for reference.

JQ1-24V

Part No JQ1-24V
Manufacturer Panasonic
Catalog Power Relays, Over 2 Amps
Description HIGH ELECTRICAL  MECHANICAL NOISE IMMUNITY RELAY | RELAY GEN PURPOSE SPDT 5A 24V
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Relays
Manufacturer Panasonic Electric Works
Packaging Bulk
Status Obsolete
Mounting Style Through Hole
Coil Voltage 24VDC
Contact Form SPDT (1 Form C)
Contact Rating (Current) 5A
Switching Voltage 250VAC, 110VDC - Max
Coil Current 16.7mA
Coil Type Non Latching
Termination Style PC Pin
Coil Insulation Class E
Must Operate Voltage 18 VDC
Must Release Voltage 1.2 VDC
Operate Time 5ms
Release Time 2ms
Temperature Range - Operating -40°C ~ 70°C
Contact Material Silver Alloy
Relay Type General Purpose
Coil Resistance 1.44 kOhms
Manufacturer Pack Quantity 100
MSL Level Not Applicable
Win Source Part Number 1191735-JQ1-24V
Manufacturer Homepage 0
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian JQ1-24V CAD Model

Description

The Panasonic Electric Works JQ1-24V is a through-hole SPDT (1 Form C) relay with a coil voltage of 24VDC.

  • Contact Rating: 5A
  • Switching Voltage: 250VAC and 110VDC
  • Coil Resistance: 1.44 kOhms
  • Coil Current: 16.7mA
  • Operate Time: 5ms
  • Release Time: 2ms
  • Suitable for use: in various applications such as home appliances, HVAC systems, and industrial control equipment.
  • Temperature Range for Operating: -40°C to 70°C.
