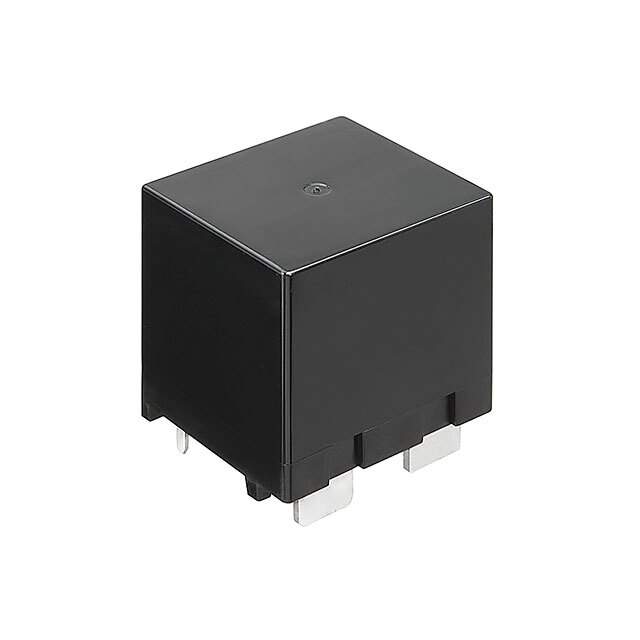

HE1AN-P-DC24V-Y5 Real Image
Same model may have multiple batches, images only for reference.

HE1AN-P-DC24V-Y5

Part No HE1AN-P-DC24V-Y5
Manufacturer Panasonic
Catalog Power Relays, Over 2 Amps
Description RELAY GEN PURPOSE SPST 48A 24V / General Purpose Relay SPST-NO (1 Form A) 24VDC Coil Through Hole
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays>Power Relays, Over 2 Amps
Mfr Panasonic Electric Works
Series HE-PV
Package Bulk
Mounting Type Through Hole
Coil Voltage 24VDC
Contact Form SPST-NO (1 Form A)
Contact Rating (Current) 48 A
Switching Voltage 250VAC - Max
Coil Current 80 mA
Coil Type Non Latching
Termination Style PC Pin
Must Operate Voltage 16.8 VDC
Must Release Voltage 2.4 VDC
Operate Time 30 ms
Release Time 10 ms
Temperature Range - Operating -50°C ~ 55°C
Contact Material Silver Nickel (AgNi)
Relay Type General Purpose
Coil Resistance 300 Ohms
Base Product Number HE1AN
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.41.0050
Other Names 255-2778,HE1ANPDC24VY5
Standard Package 25
Win Source Part Number 999580-HE1AN-P-DC24V-Y5
Ultra Librarian 3D Model Ultra Librarian HE1AN-P-DC24V-Y5 CAD Model

Description

The HE1AN-P-DC24V-Y5 is a power relay from Panasonic Electric Works.

  • Contact Rating: 48 A
  • Switching Voltage: 250VAC - Max
  • Contact Form: SPST-NO (1 Form A)
  • Coil Voltage: 24VDC
  • Coil Resistance: 300 Ohms
  • Coil Current: 80 mA
  • Operate Time: 30 ms
  • Release Time: 10 ms
  • Coil Type: Non-Latching
  • Series: HE-PV
  • Mounting Type: Through-Hole
  • Operating Temperature Range: -50°C to 55°C
