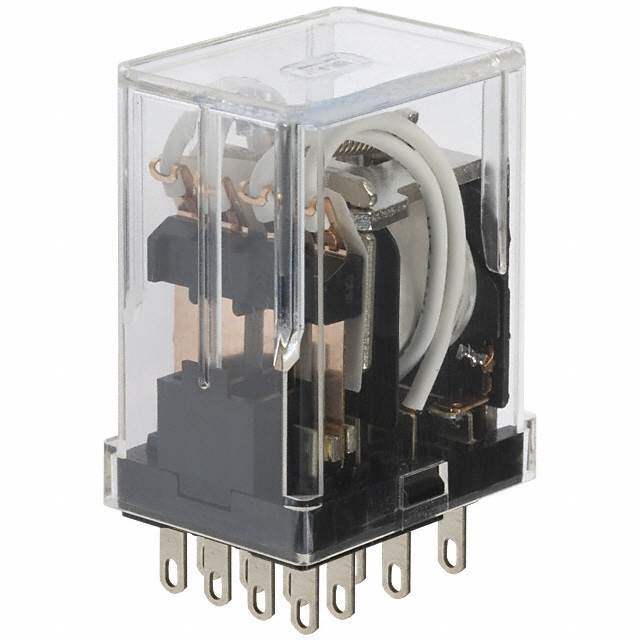

HC4-H-AC24V Real Image
Same model may have multiple batches, images only for reference.

HC4-H-AC24V

Part No HC4-H-AC24V
Manufacturer Panasonic
Catalog Power Relays, Over 2 Amps
Description RELAY GEN PURPOSE 4PDT 5A 24V
Datasheet
HC4-H-AC24V Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Relays
Manufacturer Panasonic Electric Works
Packaging Bulk
Status Active
Relay Type General Purpose
Coil Type Non Latching
Coil Current 50mA
Coil Voltage 24VAC
Contact Form 4PDT (4 Form C)
Contact Rating (Current) 5A
Switching Voltage 250VAC - Max
Turn On Voltage (Max) 19.2 VAC
Turn Off Voltage (Min) 7.2 VAC
Operate Time 20ms
Release Time 20ms
Mounting Socketable
Termination Style Plug In
Coil Power 1.2 VA
Temperature Range - Operating -50°C to 70°C
Win Source Part Number 204590-HC4-H-AC24V
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian HC4-H-AC24V CAD Model

Description

The HC4-H-AC24V is a 4PDT (4 Form C) plug-in relay from Panasonic Electric Works, designed for use in general-purpose applications.

  • Contact Form: 4PDT (4 Form C)
  • Coil Voltage: 24VAC
  • Contact Rating (Current): 5A
  • Switching Voltage: 250VAC - Max
  • Turn-On Voltage (Max): 19.2 VAC
  • Release Time: 20ms
  • Coil Power: 1.2 VA
  • Mounting: Socketable
  • Temperature Range: -50°C to 70°C
