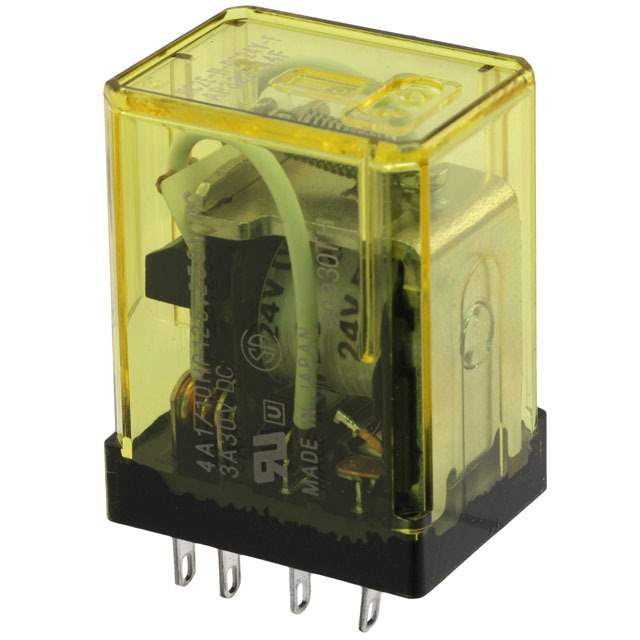

HC2E-H-DC24V-F Real Image
Same model may have multiple batches, images only for reference.

HC2E-H-DC24V-F

Part No HC2E-H-DC24V-F
Manufacturer Panasonic
Catalog Power Relays, Over 2 Amps
Description RELAY GEN PURPOSE DPDT 3A 24V
Datasheet
HC2E-H-DC24V-F Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Relays
Manufacturer Panasonic Electric Works
Packaging Bulk
Status Active
Relay Type General Purpose
Coil Type Non Latching
Coil Current 37mA
Coil Voltage 24VDC
Contact Form DPDT (2 Form C)
Contact Rating (Current) 3A
Switching Voltage 250VAC - Max
Turn On Voltage (Max) 19.2 VDC
Turn Off Voltage (Min) 2.4 VDC
Operate Time 10ms
Release Time 5ms
Features Sealed - Amber
Mounting Socketable
Termination Style Plug In
Coil Power 900 mW
Coil Resistance 650 Ohms
Temperature Range - Operating -40°C to 60°C
Win Source Part Number 001497-HC2E-H-DC24V-F
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian HC2E-H-DC24V-F CAD Model

Description

The HC2E-H-DC24V-F is an electronic component manufactured by Panasonic Electric Works. It is a general-purpose relay with a DPDT (2 Form C) contact form.

  • Coil Voltage: 24VDC
  • Coil Resistance: 650 Ohms
  • Coil Current: 37mA
  • Operate Time: 10ms
  • Release Time: 5ms
  • Contact Rating (Current): 3A
  • Switching Voltage: 250VAC - Max
  • Turn On Voltage (Max): 19.2 VDC
  • Turn Off Voltage (Min): 2.4 VDC
  • Coil Power: 900 mW
  • Features: Sealed - amber and socketable mounting
  • Win Source Part Number: 001497-HC2E-H-DC24V-F
  • Product Status: Active
  • Popularity: Medium
  • Limited supply and demand status
  • Temperature Range - Operating: -40°C to 60°C
