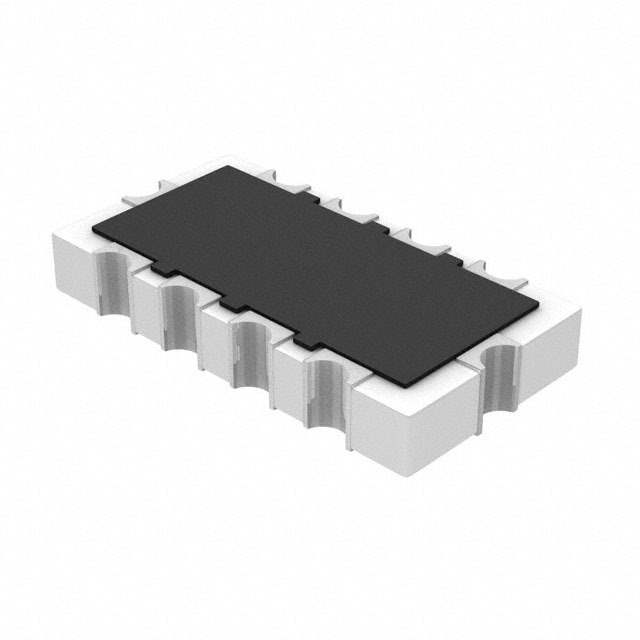

EZA-ST61AAAJ

Part No EZA-ST61AAAJ
Manufacturer Panasonic
Catalog EMI/RFI Filters (LC, RC Networks)
Description FILTER RC(PI) 1 KOHM/22PF SMD
Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Categories Filters
Manufacturer Panasonic Electronic Components
Packaging Reel - TR
Status Obsolete(EOL)
Type Low Pass
Filter Order 4th
Technology RC (Pi)
Number of Channels 4
Resistance - Channel (Ohms) 1k
Values R = 1 kOhms, C = 22pF
ESD Protection No
Temperature Range - Operating -25°C to 85°C
Applications Data Lines for Mobile Devices
Voltage Rating 25V
Mounting SMD (SMT)
Dimension 0.157" L x 0.083" W (4.00mm x 2.10mm)
Height 0.033" (0.85mm)
Win Source Part Number 112808-EZA-ST61AAAJ
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian EZA-ST61AAAJ CAD Model

Description

EZA-ST61AAAJ Electronic Component

The EZA-ST61AAAJ is crafted to provide peak performance across a multitude of electronic applications. Its robust features cater to both basic and advanced levels of electronic architecture, ensuring a reliable performance output.

  • Applications:
    • Energy storage systems
    • Embedded processing
    • High-performance audio equipment
    • Network infrastructure devices
  • Features:
    • Wide frequency response range
    • Expandable connectivity options
    • Low noise operation
    • Reliable long-term operation
  • Benefits:
    • Facilitates clear and precise operations
    • Adaptable to assorted design requirements
    • Ensures long-term device sustainability

Ideal for a wide range of technical applications, the EZA-ST61AAAJ delivers consistent performance and adaptability, meeting the ever-evolving demands of the electronic industry.
