Same model may have multiple batches, images only for reference.

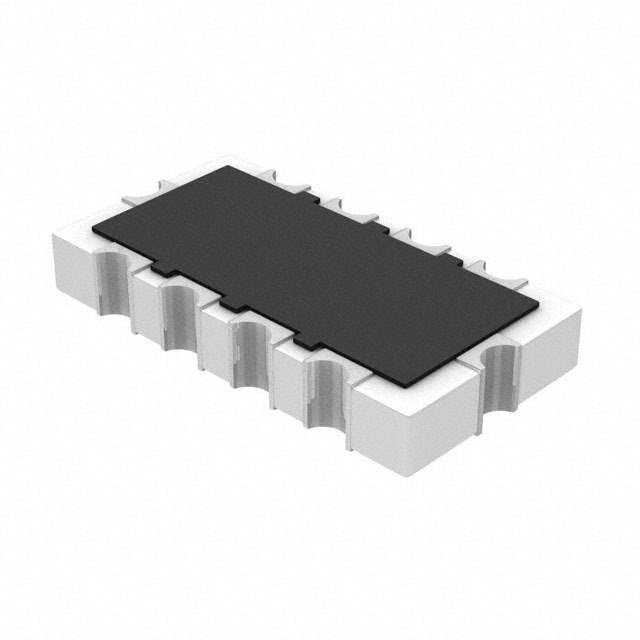

EZA-ST13AAAJ Real Image
Same model may have multiple batches, images only for reference.

EZA-ST13AAAJ

Part No EZA-ST13AAAJ
Manufacturer Panasonic
Catalog EMI/RFI Filters (LC, RC Networks)
Description FILTER RC(PI) 22 OHM/100PF SMD
Datasheet
EZA-ST13AAAJ Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Filters
Manufacturer Panasonic Electronic Components
Packaging Reel - TR
Status Obsolete(EOL)
Type Low Pass
Filter Order 4th
Technology RC (Pi)
Number of Channels 4
Resistance - Channel (Ohms) 22
Values R = 22 Ohms, C = 100pF
ESD Protection No
Temperature Range - Operating -25°C to 85°C
Applications Data Lines for Mobile Devices
Voltage Rating 25V
Mounting SMD (SMT)
Dimension 0.157" L x 0.083" W (4.00mm x 2.10mm)
Height 0.033" (0.85mm)
Win Source Part Number 097442-EZA-ST13AAAJ
Popularity Medium
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian EZA-ST13AAAJ CAD Model

Description

Product Overview

The EZA-ST13AAAJ is known for its efficient performance in power-sensitive applications. It is tailored to ensure minimal energy use while providing maximum output.

Features and Benefits

  • Energy-efficient design
  • High operational reliability
  • Reduced electromagnetic interference
  • Wide range of voltages supported

Applications

  • Battery-operated devices
  • Portable electronics
  • Green technology products
  • Smart home devices

Additional Details

This component is designed to excel in efficiency, ensuring longevity and consistent high performance in sustainable technology applications.
