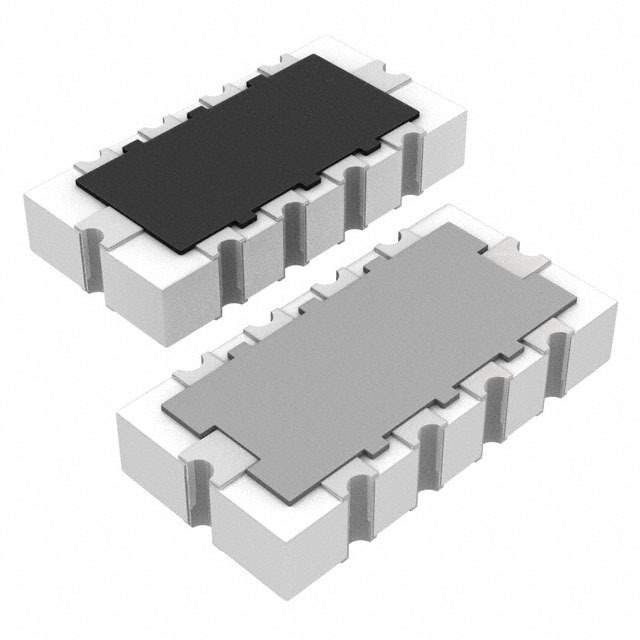

EZA-DT23AAAJ Real Image
Same model may have multiple batches, images only for reference.

EZA-DT23AAAJ

Part No EZA-DT23AAAJ
Manufacturer Panasonic
Catalog EMI/RFI Filters (LC, RC Networks)
Description FILTER RC(PI) 47 OHM/100PF SMD
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Categories Filters
Features RC (Pi) EMI Filter 1st Order Low Pass 4 Channel R = 47Ohms, C = 100pF 1206 (3216 Metric), Concave, Long Side Terminals
Manufacturer Panasonic
Series EZADT
Package Reel - TR
Part Status Obsolete
Operating Temperature Range -25°C ~ 85°C
Mounting Surface Mount
Package 1206 (3216 Metric), Concave, Long Side Terminals
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8548.90.0100
Other Part Number PDT23CT, PDT23CT-NDR, EZADT23AAAJ, PDT23TR-NDR, PDT23DKR-NDR, PDT23TR, PDT23DKR
Quantity per package 5000
Popularity Medium
Supply and Demand Status Limited
Win Source Part Number 871343-EZA-DT23AAAJ
Ultra Librarian 3D Model Ultra Librarian EZA-DT23AAAJ CAD Model

Description

The Panasonic EZADT23AAAJ is an RC EMI filter with a 1st order low pass and 4 channels.

  • Manufacturer: Panasonic
  • Filter Type: RC EMI Filter
  • Filter Order: 1st Order Low Pass
  • Channels: 4
  • Package: 1206 (3216 Metric), Concave, Long Side Terminals
  • Mounting: Surface Mount
  • Operating Temperature: -25°C to 85°C
  • Status: Obsolete
  • Supply and Demand Status: Limited
  • Quantity per Package: 5000
