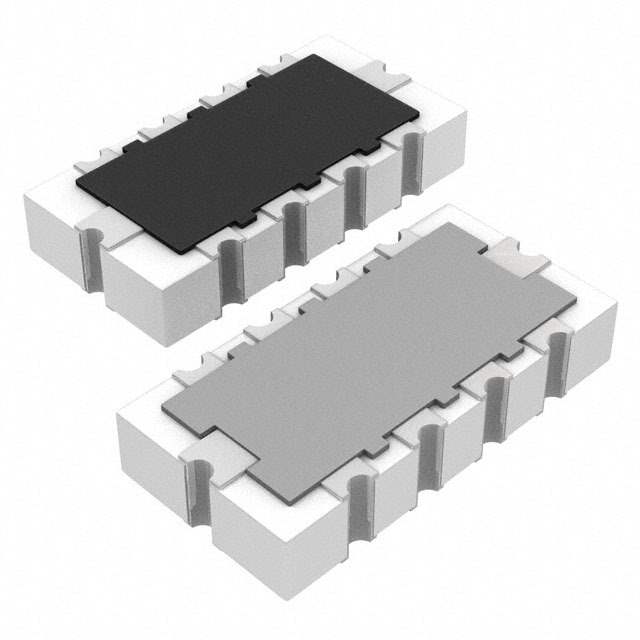

EZA-DLU02AAJ Real Image
Same model may have multiple batches, images only for reference.

EZA-DLU02AAJ

Part No EZA-DLU02AAJ
Manufacturer Panasonic
Catalog EMI/RFI Filters (LC, RC Networks)
Description FILTER RC(PI) SMD
Datasheet
EZA-DLU02AAJ Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Filters
Manufacturer Panasonic Electronic Components
Packaging Reel - TR
Status Obsolete(EOL)
Type Low Pass
Filter Order 1st
Technology RC (Pi)
Number of Channels 2
Resistance - Channel (Ohms) 15, 15k
Values R = 15 Ohms, 15 kOhms, C = 47pF
ESD Protection No
Temperature Range - Operating -25°C to 85°C
Applications USB
Voltage Rating 12V
Mounting SMD (SMT)
Dimension 0.126" L x 0.063" W (3.20mm x 1.60mm)
Height 0.033" (0.85mm)
Win Source Part Number 099830-EZA-DLU02AAJ
Popularity Medium
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian EZA-DLU02AAJ CAD Model

Description

The EZA-DLU02AAJ is a high-performance component aimed at applications requiring precision and stability. With a focus on energy savings and effective performance, it ensures a seamless operation in diverse environments.

Features and Benefits

  • Precision engineering for accuracy
  • Stable operation over various conditions
  • Energy-saving features
  • User-friendly integration

Applications and Projects

  • Data centers
  • Instrumentation
  • IoT devices

Additional Details: Designed with the latest technological advancements, the EZA-DLU02AAJ ensures optimal performance while reducing power consumption, making it a prime choice for modern applications.
