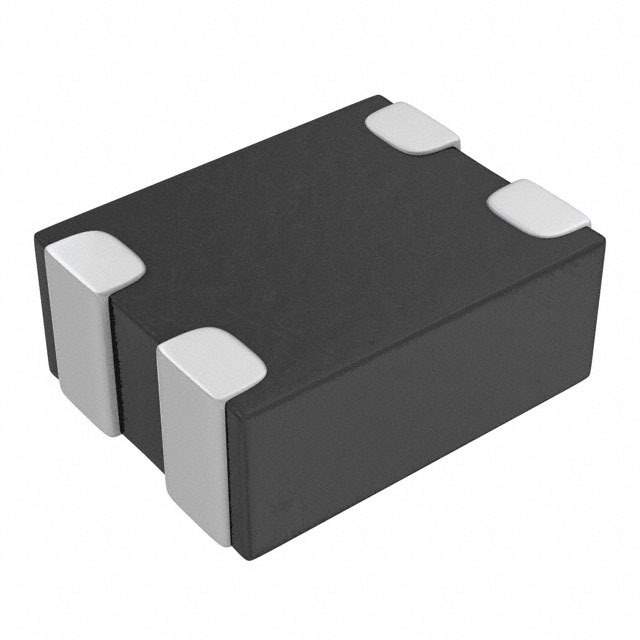

EXC-34CG900U Real Image
Same model may have multiple batches, images only for reference.

EXC-34CG900U

Part No EXC-34CG900U
Manufacturer Panasonic
Catalog Common Mode Chokes
Description CMC 100MA 2LN 90 OHM SMD / 2 Line Common Mode Choke Surface Mount 90 Ohms @ 100 MHz 100mA DCR 3Ohm
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters>Common Mode Chokes
Mfr Panasonic Electronic Components
Series EXC34
Package Tape & Reel
Filter Type Signal Line
Number of Lines 2
Impedance @ Frequency 90 Ohms @ 100 MHz
Current Rating (Max) 100mA
DC Resistance (DCR) (Max) 3Ohm
Voltage Rating - DC 5V
Temperature Range - Operating -40°C ~ 85°C
Mounting SMD (SMT)
Dimension 0.079" L x 0.049" W (2.00mm x 1.25mm)
Height (Max) 0.024" (0.60mm)
Package / Case 0805 (2012 Metric), 4 PC Pad
Base Product Number EXC-34
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8548.00.0000
Other Names EXC34CG900U,P19435TR,P19435CT,P19435DKR
Standard Package 5,000
Win Source Part Number 958288-EXC-34CG900U
Ultra Librarian 3D Model Ultra Librarian EXC-34CG900U CAD Model

Description

The 958288-EXC-34CG900U is a common mode choke from Panasonic Electronic Components. It is part of the EXC34 series and is designed for use in signal line filter applications.

  • Voltage Rating: 5V
  • Maximum Current Rating: 100mA
  • Impedance: 90 Ohms @ 100 MHz
  • DC Resistance: 3 Ohm
  • Package: 0805 (2012 Metric), 4 PC Pad
  • Packaging: Tape and reel
  • Standard Package: 5,000
  • Operating Temperature Range: -40°C to 85°C
  • ECCN: EAR99
  • REACH: Unaffected
  • HTSUS: 8548.00.0000
