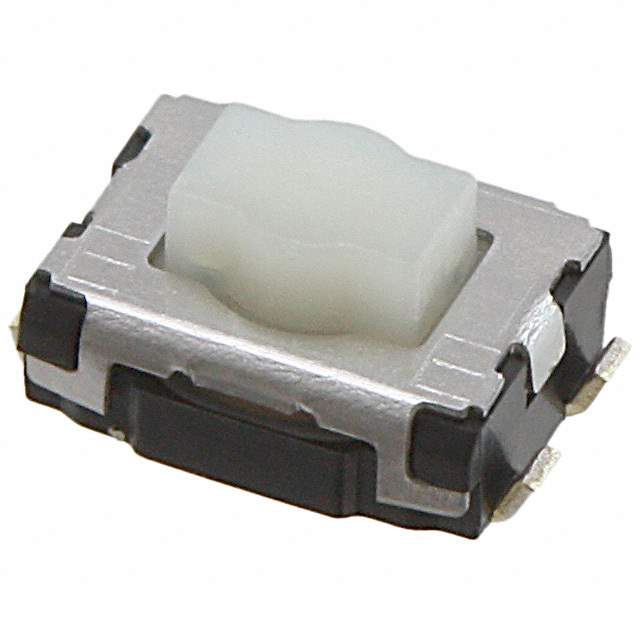

Same model may have multiple batches, images only for reference.

EVQP9P02W

Name: EVQP9P02W
Brand: Panasonic
SKU: 958587
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	EVQP9P02W
Manufacturer	Panasonic
Catalog	Tactile Switches
Description	Switch Tactile N.O. SPST Rectangular Button J-Bend 0.02A 15VDC 5N SMD Embossed Tape and Reel
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Mounting	SMD (SMT)
Termination	SMD/SMT
Contact Current Rating	20 mA
Contact Resistance	100 mΩ
Height	2.7 mm
Illumination Type	Non-Illuminated
Lead Free	Yes
Life (Cycles)	200 kcycles
Maximum Operating Temperature	85 °C
Max Voltage Rating (DC)	15 V
Mechanical Life	200 kcycles
Min Operating Temperature	-40 °C
Mount	Surface Mount
Number of Positions	2
Operating Force	5 N
Packaging	Tape & Reel
Radiation Hardening	No
RoHS	Compliant
Switch Function	Off-Mom
Switch Travel	250 µm
Termination	J-Bend
Throw Configuration	SPST
Voltage Rating (DC)	15 V
Win Source Part Number	958587-EVQP9P02W
Categories	Tactile Switches
Manufacturer	Panasonic
Popularity	Low
Supply and Demand Status	Shortage
Ultra Librarian 3D Model	Ultra Librarian EVQP9P02W CAD Model

Alternative Products

Description

The EVQP9P02W is a tactile switch manufactured by Panasonic.

Switch Type: Tactile
Number of Positions: 2
Termination: J-Bend
Contact Closure: Momentary
Contact Resistance: Low
Mechanical Life: High
Package: Surface Mount
Note: Stock up before out of stock
