Same model may have multiple batches, images only for reference.

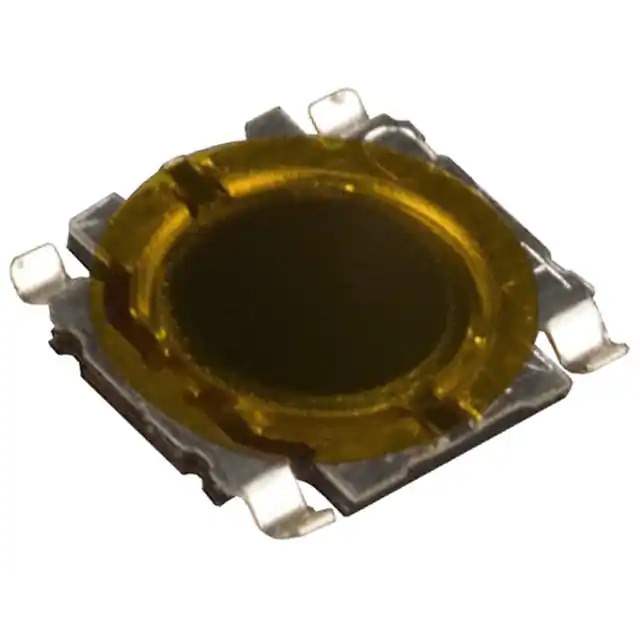

EVQ-PQMB55 Real Image
Same model may have multiple batches, images only for reference.

EVQ-PQMB55

Part No EVQ-PQMB55
Manufacturer Panasonic
Catalog Tactile Switches
Description SWITCH TACTILE SPST-NO 0.02A 15V / Tactile Switch SPST-NO Top Actuated Surface Mount
Datasheet
EVQ-PQMB55 Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches - Tactile Switches
Mfr Panasonic
Series EVQPQ
Package Tape & Reel
Product Status Obsolete
Circuit SPST-NO
Switch Function Off-Mom
Contact Rating @ Voltage 0.02A @ 15VDC
Actuator Type Snap Dome
Mounting Type Surface Mount
Actuator Height off PCB, Vertical 0.55mm
Actuator Orientation Top Actuated
Termination Style SMD (SMT) Tab
Outline 4.50mm x 4.50mm
Illumination Non-Illuminated
Operating Force 240gf
Temperature Range - Operating -20°C ~ 70°C
Switch Travel 0.20mm
Mechanical Life 50,000 Cycles
Base Product Number EVQ-PQ
Standard Package 10,000 pcs
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN EAR99
HTSUS 8536.50.9031
Win Source Part Number 918780-EVQ-PQMB55
Ultra Librarian 3D Model Ultra Librarian EVQ-PQMB55 CAD Model

Description

The EVQ-PQMB55 is a tactile switch from Panasonic's EVQPQ series.

  • Mounting: Surface mount
  • Termination Style: SMD (SMT) tab
  • Circuit Configuration: SPST-NO
  • Switch Function: Off-mom
  • Actuator Type: Snap dome
  • Switch Travel: 0.20mm
  • Contact Rating: 0.02A @ 15VDC
  • Actuation: Top actuated
  • Outline: 4.50mm x 4.50mm
  • Illumination: Non-illuminated
  • Operating Force: 240gf
  • Mechanical Life: 50,000 cycles
  • Temperature Range: -20°C to 70°C
  • Product Status: Obsolete
  • Moisture Sensitivity Level: 1 (unlimited)
