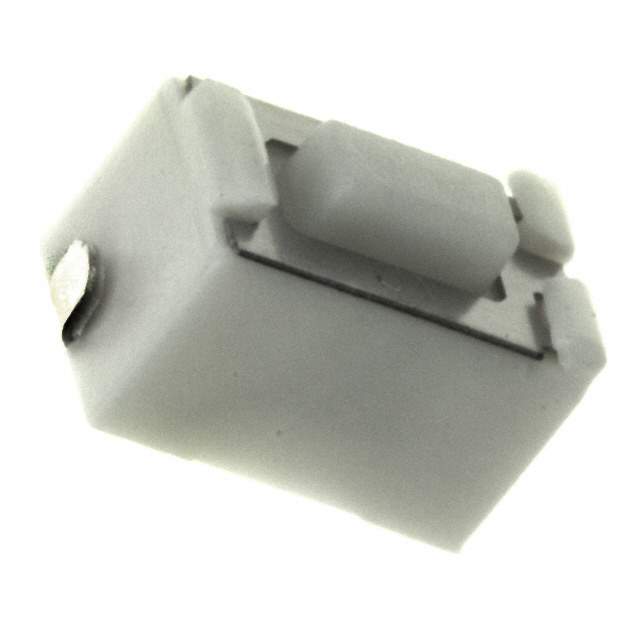

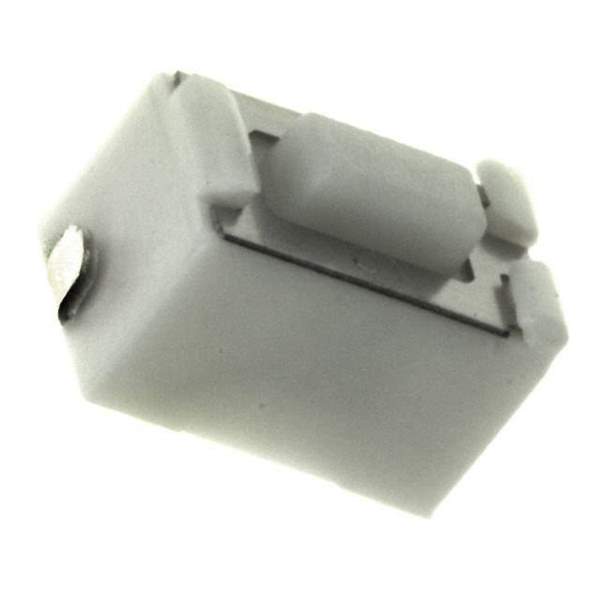

EVQ-PNF04M Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Switches - Tactile Switches
Mfr Panasonic Electronic Components
Series EVQPN
Package Tape & Reel
Circuit SPST-NO
Switch Function Off-Mom
Contact Rating @ Voltage 0.05A @ 12VDC
Actuator Type Standard
Mounting Type Surface Mount
Actuator Height off PCB, Vertical 4.30mm
Actuator Orientation Top Actuated
Termination Style J Lead
Outline 6.00mm x 3.50mm
Illumination Non-Illuminated
Operating Force 160gf
Temperature Range - Operating -30°C ~ 85°C
Switch Travel 0.25mm
Mechanical Life 50,000 Cycles
Base Product Number EVQ-PN
Standard Package 2,500
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.50.9031
Win Source Part Number 1340677-EVQ-PNF04M
Ultra Librarian 3D Model Ultra Librarian EVQ-PNF04M CAD Model

Description

The EVQ-PNF04M is a tactile switch designed for use in electronic systems. This component comes in a tape and reel package and has a standard package of 2,500.

  • Circuit: SPST-NO
  • Switch Function: Off-Mom
  • Contact Rating @ Voltage: 0.05A @ 12VDC
  • Operating Force: 160gf
  • Mechanical Life: 50,000 Cycles
  • Operating Temperature: -30°C ~ 85°C
  • Termination Style: J Lead
  • Actuator Orientation: Top Actuated
  • Illumination: Non-Illuminated
  • Outline: 6.00mm x 3.50mm
  • Packaging: Tape & Reel (TR)
  • Standard Package: 2,500
  • Manufacturer: Panasonic Electronic Components
  • Base Product Number: EVQ-PN
