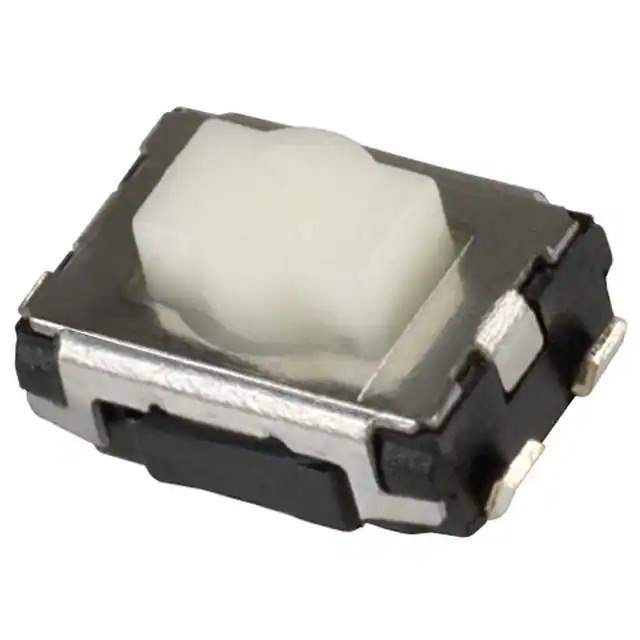

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Switches - Tactile Switches
Mfr Panasonic
Series EVPAA
Package Tape & Reel
Product Status Active
Circuit SPST-NO
Switch Function Off-Mom
Contact Rating @ Voltage 0.02A @ 15VDC
Actuator Type Rectangular Button
Mounting Type Surface Mount
Actuator Height off PCB, Vertical 1.70mm
Actuator Orientation Top Actuated
Termination Style J Lead
Outline 3.50mm x 2.90mm
Illumination Non-Illuminated
Operating Force 240gf
Temperature Range - Operating -40°C ~ 85°C
Switch Travel 0.15mm
Mechanical Life 200,000 Cycles
Base Product Number EVP-AA
Standard Package 5,000 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.50.9031
Win Source Part Number 871294-EVP-AA402W
Ultra Librarian 3D Model Ultra Librarian EVP-AA402W CAD Model

Description

The EVPAA series is a surface mount tactile switch from Panasonic.

  • Circuit Configuration: SPST-NO
  • Switch Function: Off-Mom
  • Actuator Type: Rectangular Button
  • Operating Force: 240gf
  • Contact Rating: 0.02A @ 15VDC
  • Mechanical Life: 200,000 cycles
  • Mounting Type: Surface Mount
  • Operating Temperature Range: -40°C to 85°C
  • Packaging: Tape and reel
  • Standard Package: 5,000 pcs
  • Product Status: Active
  • Series: EVPAA
