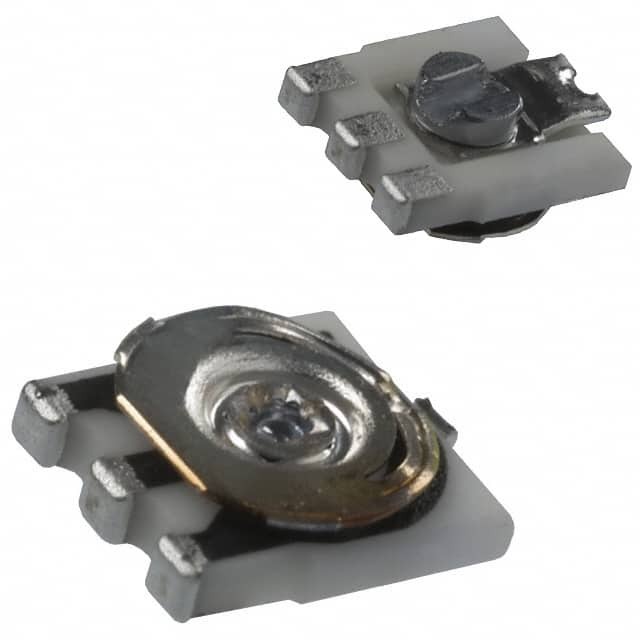

Same model may have multiple batches, images only for reference.
EVM-3RSX50B13
Same model may have multiple batches, images only for reference.

EVM-3RSX50B13

Part No EVM-3RSX50B13
Manufacturer Panasonic
Catalog Trimmer Potentiometers
Description TRIMMER 1K OHM 0.15W J LEAD BACK / 1 kOhms 0.15W J Lead Surface Mount Trimmer Potentiometer Cermet 1.0 Turn Bottom Adjustment
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Potentiometers, Variable Resistors - Trimmer Potentiometers
Mfr Panasonic
Series EVM
Package Tape & Reel
Product Status Obsolete
Resistance 1 kOhms
Power (Watts) 0.15W
Tolerance ±25%
Temperature Coefficient ±250ppm/°C
Number of Turns 1
Adjustment Type Bottom Adjustment
Resistive Material Cermet
Mounting Type Surface Mount
Termination Style J Lead
Size / Dimension Rectangular - 0.136" x 0.122" Face (3.45mm x 3.10mm)
Standard Package 2,000 pcs
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.40.8050
Win Source Part Number 871287-EVM-3RSX50B13
Ultra Librarian 3D Model Ultra Librarian EVM-3RSX50B13 CAD Model

Description

The 871287-EVM-3RSX50B13 is a potentiometer from Panasonic's EVM series.

  • Resistance: 1 kOhms
  • Power Rating: 0.15W
  • Adjustment Type: Bottom
  • Resistive Material: Cermet
  • Tolerance: ±25%
  • Temperature Coefficient: ±250ppm/°C
  • Termination Style: J Lead
  • Mounting Type: Surface Mount
  • Package Size: 0.136" x 0.122" face (3.45mm x 3.10mm)
  • Package: Tape & Reel
  • Standard Package Quantity: 2,000 pcs
  • Category: Potentiometers, Variable Resistors - Trimmer Potentiometers
  • Product Status: Obsolete
  • ECCN: EAR99
  • REACH: Unaffected
  • HTSUS Code: 8533.40.8050
  • Manufacturer: Panasonic
