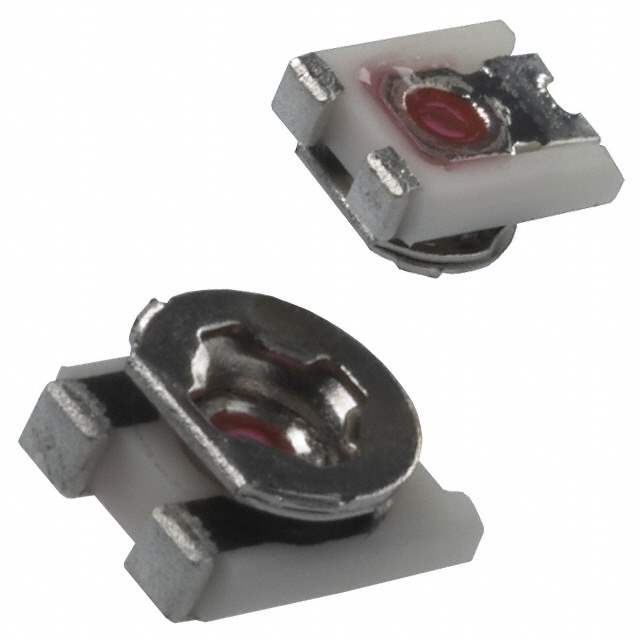

EVM-2WSX80B24 Real Image
Same model may have multiple batches, images only for reference.

EVM-2WSX80B24

Part No EVM-2WSX80B24
Manufacturer Panasonic
Catalog Trimmer Potentiometers
Description TRIMMER 20K OHM 0.15W SMD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Potentiometers, Variable Resistors
Manufacturer Panasonic Electronic Components
Packaging Reel - TR
Resistance (Ohms) 20k
Power (Watts) 0.15W
Tolerance ±25%
Temperature Coefficient ±250ppm/°C
Number of Turns 1
Adjustment Type Top Adjustment
Resistive Material Cermet
Mounting SMD (SMT)
Termination Style J Lead
Dimension Rectangular - 0.108" x 0.087" Face x 0.041" H (2.75mm x 2.20mm x 1.05mm)
Win Source Part Number 109069-EVM-2WSX80B24
Popularity Medium
Supply and Demand Status Balance
Quantity per package 3k pcs
Ultra Librarian 3D Model Ultra Librarian EVM-2WSX80B24 CAD Model

Description

EVM-2WSX80B24 - High Precision Resistor

The EVM-2WSX80B24 model provides unmatched precision and reliability, expertly crafted to maintain efficiency in demanding environments.

  • Applications:
    • Medical instruments
    • Aerospace technology
    • Instrumentation and measurement devices
  • Features & Benefits:
    • Excellent load life stability
    • Highly resistant to environmental factors
    • Micro size facilitating versatile applications
  • Additional Details:
    • Resistance tolerance: ±0.25%
    • Temperature coefficient: 50ppm/°C
    • Engineered to meet international standards
