Same model may have multiple batches, images only for reference.

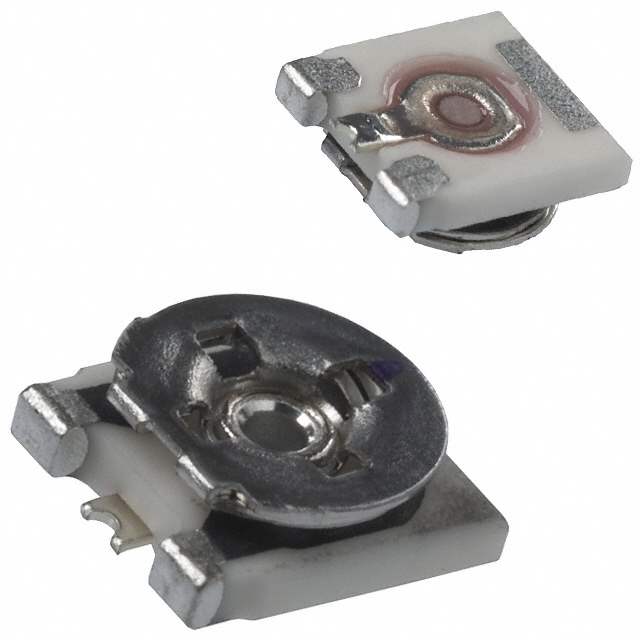

EVM-1ESX30B25 Real Image
Same model may have multiple batches, images only for reference.

EVM-1ESX30B25

Part No EVM-1ESX30B25
Manufacturer Panasonic
Catalog Trimmer Potentiometers
Description TRIMMER 200K OHM 0.2W SMD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Potentiometers, Variable Resistors
Manufacturer Panasonic Electronic Components
Packaging Reel - TR
Resistance (Ohms) 200k
Power (Watts) 0.2W, 1/5W
Tolerance ±25%
Temperature Coefficient ±250ppm/°C
Number of Turns 1
Adjustment Type Top Adjustment
Resistive Material Cermet
Mounting SMD (SMT)
Termination Style J Lead
Dimension Rectangular - 0.165" x 0.150" Face x 0.055" H (4.20mm x 3.80mm x 1.40mm)
Win Source Part Number 124485-EVM-1ESX30B25
Popularity Medium
Supply and Demand Status Balance
Quantity per package 1k pcs
Ultra Librarian 3D Model Ultra Librarian EVM-1ESX30B25 CAD Model

Description

Product Overview

The EVM-1ESX30B25 stands out with its exceptional design, making it a versatile component for innovative electronic projects.

Features and Benefits

  • Resilient Construction: Crafted to endure intense usage and harsh conditions.
  • Maximum Compatibility: Designed for seamless use with a variety of systems and technologies.
  • Integrated Efficiency: Combines efficiency with superior performance measures.

Applications

  • Wearable Technology
  • Smart Home Devices
  • Industrial Control Systems

By using this advanced component, organizations can significantly enhance their product offerings and technological capacity.
