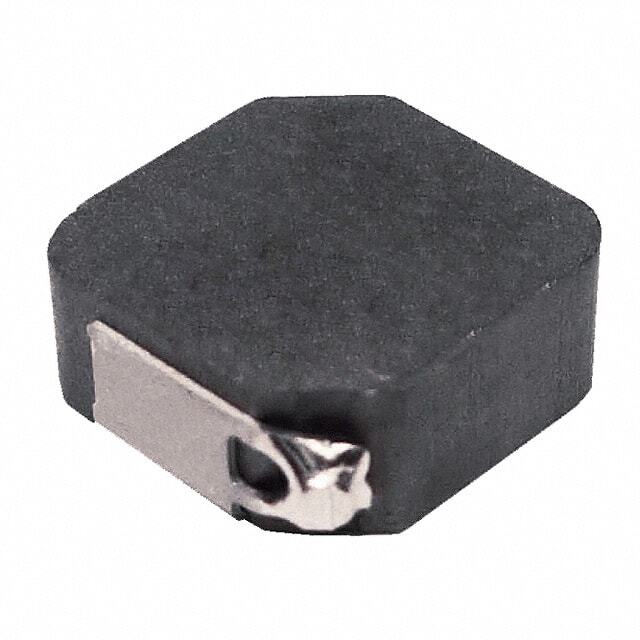

ETQ-P3WR47WFN
Same model may have multiple batches, images only for reference.

ETQ-P3WR47WFN

Part No ETQ-P3WR47WFN
Manufacturer Panasonic
Catalog Fixed Inductors
Description FIXED IND 470NH 20A 4.2 MOHM SMD / 470 nH Shielded Inductor 20 A 4.2mOhm Max 2-SMD, J-Lead
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes - Fixed Inductors
Mfr Panasonic
Series PCC-M0630W
Package Tape & Reel
Product Status Obsolete
Material - Core Metal Composite
Inductance 470 nH
Tolerance ±20%
Current Rating (Amps) 20 A
Shielding Shielded
DC Resistance (DCR) 4.2mOhm Max
Inductance Frequency - Test 100 kHz
Mounting Type Surface Mount
Package / Case 2-SMD, J-Lead
Size / Dimension 0.276" L x 0.260" W (7.00mm x 6.60mm)
Height - Seated (Max) 0.118" (3.00mm)
Base Product Number ETQ-P3
Standard Package 1,000 pcs
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN EAR99
HTSUS 8504.50.8000
Win Source Part Number 871265-ETQ-P3WR47WFN
Ultra Librarian 3D Model Ultra Librarian ETQ-P3WR47WFN CAD Model

Description

The ETQ-P3WR47WFN is a fixed inductor from Panasonic's PCC-M0630W series. Bold the product name (e.g., BAV99S,135 → ETQ-P3WR47WFN) and manufacturer (e.g., Nexperia USA Inc. → Panasonic).

  • Type: Shielded inductor
  • Size: 0.276 inches (7.00mm) in length and 0.260 inches (6.60mm) in width
  • Inductance: 470 nH with a tolerance of ±20%
  • Max Seated Height: 0.118 inches (3.00mm)
  • Mounting: Surface mount mounting
  • Package: Tape and reel package
  • DC Resistance (DCR): 4.2mOhm max
  • Current Rating: 20 A
  • Status: Obsolete product
  • Standard Package: 1,000 pcs
