EVAL-AD7124-8SDZ Evaluation Board from Analog Devices Inc.

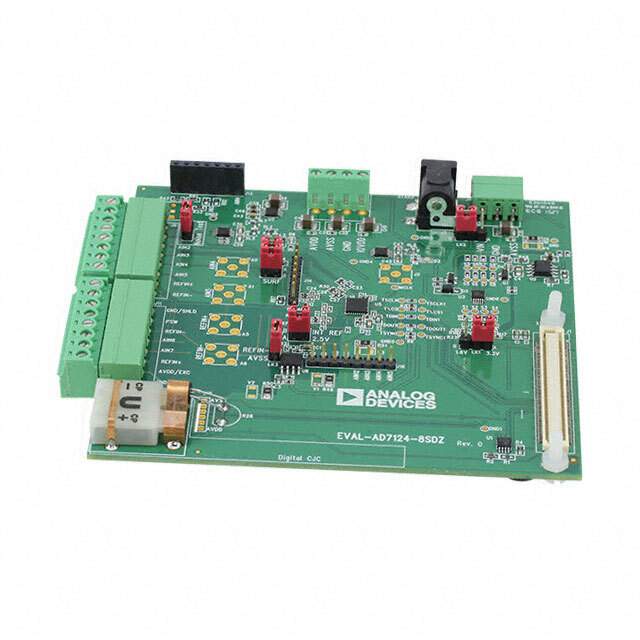

The EVAL-AD7124-8SDZ is a comprehensive evaluation board designed by Analog Devices Inc. to facilitate the testing and performance analysis of the AD7124-8, a low noise, low power, 24-bit sigma-delta (Σ-Δ) analog-to-digital converter (ADC). This evaluation board is an ideal platform for developers and engineers to explore the features and capabilities of the AD7124-8 ADC, which is particularly suited for high-precision applications such as process control, instrumentation, and industrial automation.

At the heart of the EVAL-AD7124-8SDZ is the AD7124-8 ADC, which offers a multitude of features including multiple filter options, a low noise programmable gain array, and support for up to 8 differential or 15 single-ended inputs. The device's exceptional performance in terms of accuracy and flexibility makes it an excellent choice for applications requiring high-resolution signal acquisition.

The evaluation board connects to a PC via a USB interface, which is used for both power and data communication. Users can operate the board through the provided evaluation software, enabling them to configure the ADC settings, capture data, and analyze the performance using a user-friendly graphical interface. The software also allows for the programming of the ADC's various registers, providing complete control over the device's functionality.

Key features of the EVAL-AD7124-8SDZ include:

• On-board AD7124-8 ADC providing 24-bit data resolution
• USB interface for easy connection and power supply
• Access to all ADC inputs, outputs, and supply pins
• Pseudo-differential analog input configuration
• Reference options including an external reference and an on-board 2.5 V reference
• Flexible power supply options for the ADC
• Compatible with the EVAL-SDP-CH1Z System Demonstration Platform (SDP-H1) for additional features and functionality

Whether for prototyping, product development, or educational purposes, the EVAL-AD7124-8SDZ evaluation board is a valuable tool for professionals seeking to harness the precision and power efficiency of the AD7124-8 ADC. With this evaluation board, Analog Devices Inc. provides a straightforward and effective way to expedite the design process and achieve faster time-to-market for products requiring high-accuracy analog-to-digital conversion.
