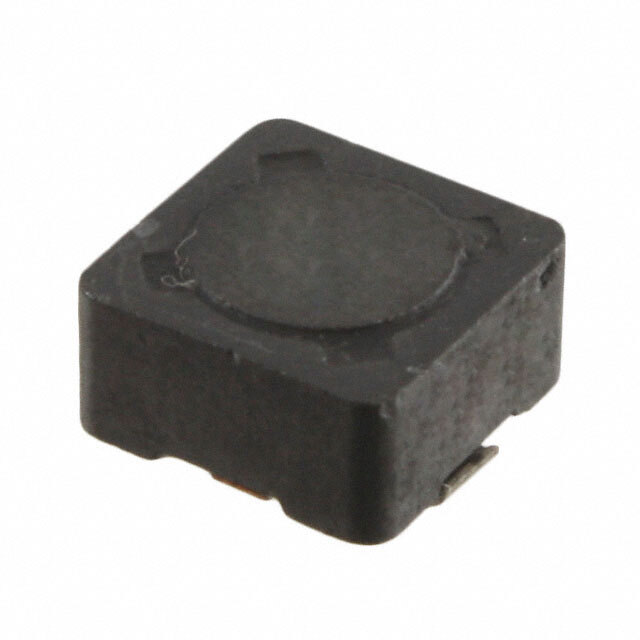

ETQ-P3LR24CFM

Part No ETQ-P3LR24CFM
Manufacturer Panasonic
Catalog Fixed Inductors
Description FIXED IND 240NH 22A 1.12MOHM SMD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Product Status Not For New Designs
Type Drum Core, Wirewound
Material - Core Metal Composite
Inductance 240 nH
Tolerance ±20%
Current Rating (Amps) 22 A
Shielding Shielded
DC Resistance (DCR) 1.12mOhm
Temperature Range - Operating -40°C ~ 150°C
Inductance Frequency - Test 1 MHz
Mounting Type Surface Mount
Case / Package 2-SMD, J-Lead
Size / Dimension 0.343" L x 0.276" W (8.70mm x 7.00mm)
Height - Seated (Max) 0.118\
Package Tape & Reel
Supply and Demand Status Shortage
Win Source Part Number 1532125-ETQ-P3LR24CFM
Ultra Librarian 3D Model Ultra Librarian ETQ-P3LR24CFM CAD Model
