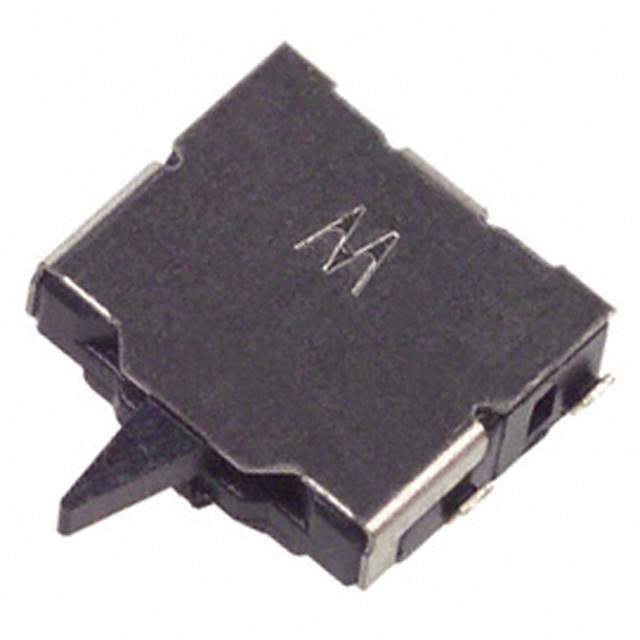

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Actuator Length 1.7 mm
Contact Current Rating 10 mA
Contact Resistance 500 mΩ
Current Rating 10 mA
Electrical Life 50 kcycles
Height 1.5 mm
Lead Free Lead Free
Max Operating Temperature 60 °C
Max Voltage Rating (DC) 5 V
Mechanical Life 50 kcycles
Min Operating Temperature -10 °C
Mount Surface Mount
Number of Terminals 4
Operating Force 300 mN
Operating Position 2.2098 mm
Orientation Right Angle
REACH SVHC No SVHC
RoHS Compliant
Schedule B 8536509065, 8536509065
Switch Function Mom-Off-Mom
Termination J-Bend
Throw Configuration SPDT
Voltage Rating 5 V
Voltage Rating (DC) 5 V
Width 4.15 mm
Win Source Part Number 1106748-ESE23J101
Categories Snap Action,Limit Switches
Manufacturer Panasonic
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian ESE23J101 CAD Model

Description

The Panasonic ESE23J101 is a snap action limit switch that is designed to provide a reliable and accurate switching solution for a wide range of applications.

  • Orientation: Right angle
  • Termination: J-bend
  • Voltage Rating: 5 V
  • Current Rating: 10 mA
  • Switch Function: Mom-off-mom
  • Actuator Length: 1.7 mm
  • Electrical Life: 50 kcycles
  • Contact Resistance: 500 mΩ
  • Height: 1.5 mm
  • Width: 4.15 mm
  • Lead-Free: Yes
  • RoHS Compliant: Yes
