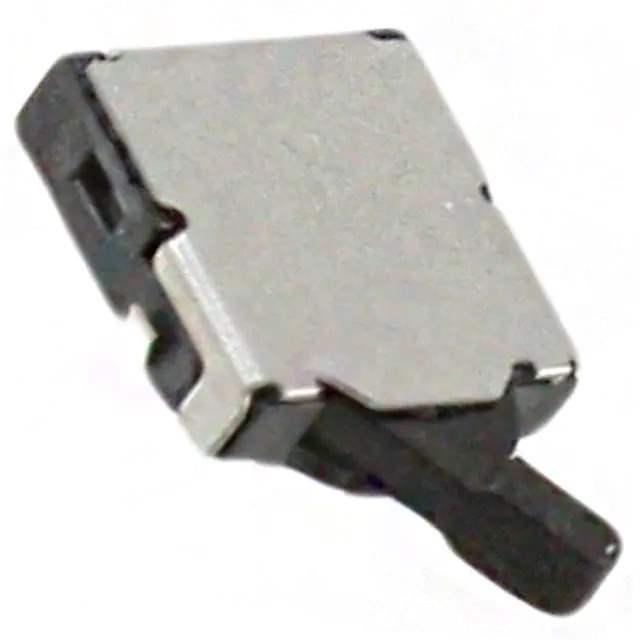

ESE-18L11B Real Image
Same model may have multiple batches, images only for reference.

ESE-18L11B

Part No ESE-18L11B
Manufacturer Panasonic
Catalog Snap Action, Limit Switches
Description SWITCH DETECTOR SPST-NO 10MA 5V / Switch SPST-NO Surface Mount, Right Angle
Datasheet
ESE-18L11B Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches - Limit Switches
Mfr Panasonic
Series ESE18
Package Tape & Reel
Product Status Active
Circuit SPST-NO
Switch Function Off-Mom
Current Rating (Amps) 10mA (DC)
Voltage Rating - DC 5 V
Actuator Type Angled Toggle (Detector)
Mounting Type Surface Mount, Right Angle
Termination Style J Lead
Features Board Guide
Operating Force 30gf
Operating Position 0.102" (2.6mm)
Temperature Range - Operating -10°C ~ 60°C
Electrical Life 50,000 Cycles
Mechanical Life 50,000 Cycles
Base Product Number ESE-18
Standard Package 5,000 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.50.7000
Win Source Part Number 871219-ESE-18L11B
Ultra Librarian 3D Model Ultra Librarian ESE-18L11B CAD Model

Description

The Panasonic 871219-ESE-18L11B is a limit switch in the ESE18 series.

  • Series: ESE18
  • Termination Style: J Lead
  • Packaging: Tape & Reel
  • Circuit: SPST-NO
  • Switch Function: Off-Mom
  • Actuator Type: Angled Toggle (Detector)
  • Operating Force: 30gf
  • Mechanical Life: 50,000 cycles
  • Operating Position: 0.102" (2.6mm)
  • Mounting Type: Surface Mount, Right Angle
  • Temperature Range: -10°C to 60°C
  • MSL Level: 1 (unlimited)
  • Current Rating: 10mA (DC)
  • HTSUS Code: 8536.50.7000
  • Base Product Number: ESE-18
  • Product Status: Active
