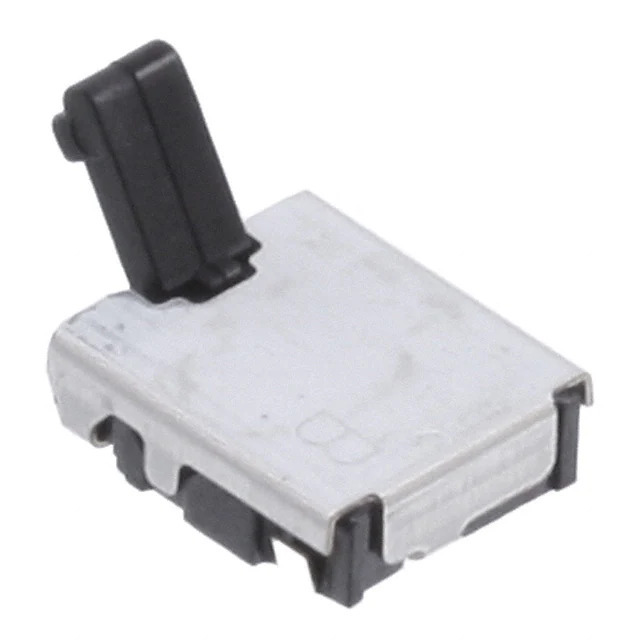

ESE-13V01A Panasonic
Same model may have multiple batches, images only for reference.

ESE-13V01A

Part No ESE-13V01A
Manufacturer Panasonic
Catalog Snap Action, Limit Switches
Description SWITCH DETECTOR SPST-NO 10MA 5V / Switch SPST-NO Surface Mount, Right Angle
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches - Limit Switches
Mfr Panasonic Electronic Components
Series ESE13
Package Tape & Reel
Product Status Active
Circuit SPST-NO
Switch Function Off-Mom
Current Rating (Amps) 10mA (DC)
Voltage Rating - DC 5 V
Actuator Type Angled Toggle (Detector)
Mounting Type Surface Mount, Right Angle
Termination Style J Lead
Ingress Protection -
Features -
Operating Force 30gf
Release Force -
Operating Position 15°
Pretravel 15°
Differential Travel -
Overtravel 60°
Temperature Range - Operating -10°C ~ 60°C
Electrical Life 50,000 Cycles
Mechanical Life 50,000 Cycles
Base Product Number ESE-13
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.50.7000
Win Source Part Number 1355610-ESE-13V01A
Ultra Librarian 3D Model Ultra Librarian ESE-13V01A CAD Model

Description

The Panasonic Electronic Components ESE-13V01A is a limit switch with a voltage rating of 5VDC.

  • Voltage Rating: 5VDC
  • Current Rating: 10mA
  • Switch Type: SPST-NO
  • Actuator: Angled Toggle
  • Mounting Type: Surface Mount, Right Angle
  • Operating Position: 15°
  • Pretravel: 15°
  • Mechanical Life: 50,000 cycles
  • Electrical Life: 50,000 cycles
  • Operating Force: 30gf
  • Status: Active
  • Series: ESE13
