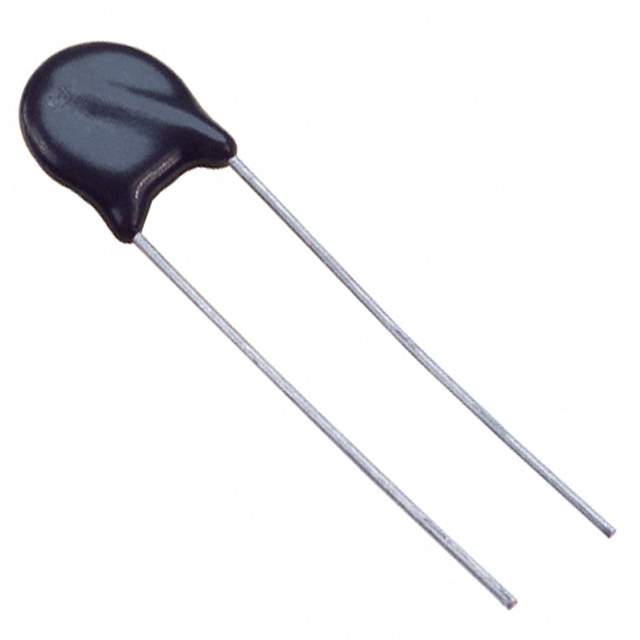

ERZ-V10D220 Real Image
Same model may have multiple batches, images only for reference.

ERZ-V10D220

Part No ERZ-V10D220
Manufacturer Panasonic
Catalog TVS - Varistors, MOVs
Description VARISTOR 22V 1KA DISC 10MM / 22 V 1 kA Varistor 1 Circuit Through Hole Disc 11.5mm
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>TVS - Varistors, MOVs
Mfr Panasonic Electronic Components
Series ZNR®
Package Bulk
Maximum AC Volts 14 V
Maximum DC Volts 18 V
Varistor Voltage (Min) 20 V
Varistor Voltage (Typ) 22 V
Varistor Voltage (Max) 24 V
Current - Surge 1 kA
Energy 3.2J
Number of Circuits 1
Capacitance @ Frequency 11000 pF @ 1 kHz
Temperature Range - Operating -40°C ~ 85°C (TA)
Mounting Type Through Hole
Package / Case Disc 11.5mm
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.40.4000
Other Names P7299-NDR,Q5678619B,P7299,ERZV10D220
Standard Package 50
Win Source Part Number 1009918-ERZ-V10D220
Ultra Librarian 3D Model Ultra Librarian ERZ-V10D220 CAD Model

Description

The Panasonic Electronic Components ZNR series varistor is a circuit protection device that is used to protect electronic circuits from voltage surges and transient spikes.

  • Capacitance: 11000 pF @ 1 kHz
  • Varistor Voltage: 20 V to 24 V
  • Surge Current: 1 kA
  • Maximum AC Voltage: 14 V
  • Maximum DC Voltage: 18 V
  • Energy Rating: 3.2J
  • Mounting Type: Through Hole
  • Package/Case: Disc 11.5mm
  • Operating Temperature: -40°C to 85°C (TA)
  • Ideal for: TVS-Varistors and MOVs
