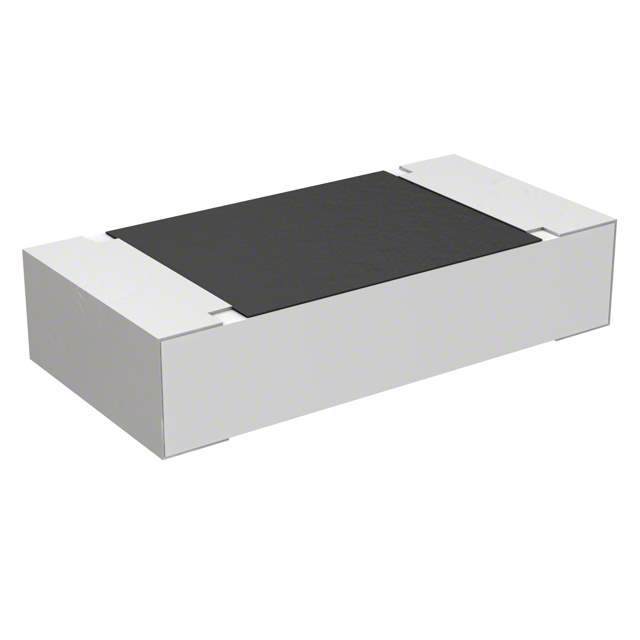

The ERA8AEB910V is a chip resistor from Panasonic's ERA series, designed for surface mount technology (SMT). This resistor offers good stability and reliability in a compact package. The '910V' indicates a resistance value of 91 ohms.

Applications

• General Purpose Circuits: Suitable for current limiting, voltage division, and pull-up/pull-down resistor applications.
• Consumer Electronics: Found in devices such as televisions, audio equipment, and set-top boxes.
• Industrial Equipment: Used in sensors, controllers, and power supplies.
• Automotive Electronics: Employed in automotive control units and sensor interfaces.
• Telecommunications: Utilized in network devices and communication modules.

Features

• Resistance Value: 91 ohms.
• Tolerance: ±0.5%.
• Power Rating: 0.125W (1/8W).
• Temperature Coefficient of Resistance (TCR): ±25 ppm/°C.
• Package Size: 1206 (3216 metric).
• Operating Temperature Range: -55°C to +155°C.
• RoHS Compliant: Lead-free and compliant with environmental regulations.

Benefits

• High Precision: ±0.5% tolerance allows for accurate circuit performance.
• Excellent Stability: TCR of ±25 ppm/°C ensures minimal resistance change over temperature.
• Compact Size: 1206 package suitable for high-density PCB designs.
• Wide Operating Temperature: Reliable operation across a broad temperature range.
• RoHS Compliant: Meets environmental standards for lead-free components.

Additional Details

The ERA8AEB910V is designed for reflow soldering processes and supplied on tape and reel for automated assembly. The 1206 package has dimensions of 3.2 mm x 1.6 mm. The resistor is constructed using a metal glaze thick film resistive element on a ceramic substrate, providing excellent long-term stability. The low TCR ensures minimal drift in resistance value with temperature changes, making it suitable for precision analog circuits and instrumentation. The resistor's small size and high reliability make it a good choice for applications where space is limited and performance is critical. The metal glaze element provides excellent protection against environmental factors, ensuring long service life. The resistor is designed to withstand high surge currents. It is also suitable for applications requiring high-frequency performance. The terminals are designed for excellent solderability.
